Last updated: September 1, 2026
You can replace Toyota Tundra wiper blades in about 10 minutes, and most installations need no tools. Common U.S. fitment catalogs list 19-inch driver and passenger blades for 2000–2006 Tundras, 26-inch driver and 22-inch passenger blades for 2007–2021 models, and 24-inch blades on both sides for 2022–2026 trucks. The connector also changed across generations, so confirm your exact model year and blade-brand fitment before buying. Once fitment is correct, remove one old blade at a time, lock the new blade to the arm, tug-test it, lower the arm gently, and test the sweep with washer fluid.
Research note: This guide uses Toyota’s published wiper-replacement precautions plus model-year fitment catalogs for Tundra blade sizes and connector families. Adapter names can differ between aftermarket blade brands, especially on newer Tundras, so the blade manufacturer’s exact vehicle finder should be your final fitment check.
Quick Answer
Turn the truck and wipers off, confirm the arm clears the hood, and protect the windshield with a folded towel. Release the old blade according to its connector: a small J-hook is common on 2000–2006 trucks, pinch-tab fitment is common on 2007–2021 trucks, and 2022–2026 models commonly use a push-button/top-lock-style connection. Install the correct blade and adapter until fully locked, tug-test it, lower the arm slowly, then test both blades with washer fluid.
Key Takeaways
- Common catalog sizes are 19″/19″ for 2000–2006, 26″/22″ for 2007–2021, and 24″/24″ for 2022–2026 Tundras; verify your exact model year before ordering.
- Connector families also changed: small J-hook, pinch tab, and newer push-button/top-lock-style fitments are all found across Tundra generations.
- Do not confuse the wiper-lever procedure used for the active front spoiler’s service position on 2022+ Tundras with a wiper-arm service position.
- Keep one hand on the spring-loaded arm so it cannot snap against the windshield.
- Do not force the adapter. A correct installation locks fully and passes a gentle tug test.
- Test new blades with washer fluid rather than wiping a dry windshield.
At a Glance
| Typical DIY Time | About 10 minutes |
| Difficulty | Easy |
| Tools Needed | Usually none; a small flat screwdriver, towel, and safety glasses can help |
| Common 2000–2006 Fitment | 19″ driver / 19″ passenger; small J-hook family |
| Common 2007–2021 Fitment | 26″ driver / 22″ passenger; pinch-tab family |
| Common 2022–2026 Fitment | 24″ driver / 24″ passenger; push-button/top-lock-style family |
What Wiper Blade Size and Connector Does a Toyota Tundra Use?
Toyota Tundra wiper blade size and connector design changed across generations. The table below summarizes the common U.S. catalog fitment found in current blade databases. Treat it as a fast reference, then confirm your exact model year in the blade manufacturer’s vehicle finder before buying because adapter names and package contents can differ between brands.
| Tundra model years | Driver blade | Passenger blade | Common connector family |
|---|---|---|---|
| 2000–2006 | 19 inches | 19 inches | Small J-hook / hook-slot style |
| 2007–2021 | 26 inches | 22 inches | Pinch tab |
| 2022–2026 | 24 inches | 24 inches | Push-button / top-lock-style fitment; adapter terminology varies by blade brand |
Fitment note: Blade length alone does not prove that a replacement will fit. Check the model year, driver/passenger position, connector, and adapter supplied with the specific blade. Some aftermarket catalogs use different names for similar newer push-button or top-lock connections.
Use this four-point check before removing either blade:
| Check | What to confirm | Why it matters |
|---|---|---|
| Model year or VIN | The catalog entry matches your exact truck | Tundra generations use different blade sizes and connectors |
| Blade length | Driver and passenger lengths match the vehicle-specific catalog | An incorrect length can overlap, hit trim, or leave an unwiped area |
| Connector | The new blade includes the adapter required for your arm | A correct-length blade can still be incompatible with the arm |
| Arm clearance | The arm can be lifted without contacting the hood | Forcing the arm can damage the blade, arm, hood, or windshield |
Note: Measuring the existing blades is useful as a cross-check, but it should not be your only fitment method. A previous owner may have installed the wrong size. Confirm the truck’s model year in a vehicle-specific blade catalog before ordering.
[Products Worth Considering]
This all-season wiper blade set is designed to deliver smooth, streak-free visibility for a wide range of vehicles, including popular Toyota, Ford, Dodge, Chrysler, and Acura models. Built with premium silicone and a reinforced steel frame, these blades are made for dependable performance in wet or dry conditions while offering easy J/U-hook installation and long-lasting durability.
These RaidBee windshield wiper blades are designed as a replacement fit for Toyota Rav4 models from 2006 through 2012. They feature a premium rubber compound and corrosion-resistant frame for smooth, streak-free wiping, while the precision spoiler helps maintain steady windshield contact for clearer visibility in rain, snow, sleet, and mist. The OE-style clip-on design makes installation quick and tool-free for a secure, vibration-free fit.
These premium replacement windshield wiper blades are designed to deliver smooth, quiet, and reliable wiping performance for improved visibility in changing weather. Compatible with select Toyota Camry and 4Runner models, they feature all-season natural rubber and a frameless design that helps resist snow and ice buildup for dependable everyday driving.
Gather Tools, Parts, and Safety Items
Have the replacement blades, a towel or clean cloth, and safety glasses ready before lifting the wiper arms. Most wiper blade swaps do not require tools, but a small flat screwdriver can help release a stubborn plastic tab if your fingers cannot reach it.
[Products Worth Considering]
These premium all-season windshield wiper blades are designed to deliver clear, quiet wiping performance and improved driving visibility in rain, snow, and changing weather. Built with natural rubber and a frameless design, they help resist ice buildup while providing durable, smooth operation for compatible Toyota Camry and Highlander models.
Bosch ICON beam wiper blades are designed to deliver reliable all-weather performance with a custom-contoured fit for improved windshield contact. Their dual-rubber blade technology helps resist heat and ozone deterioration for longer life, while the asymmetrical spoiler maintains steady pressure to reduce lift-off and improve visibility at higher speeds. Installation is quick and easy with a hook-style adapter compatible with common 9x3mm and 9x4mm wiper arms.
This 3-piece windshield wiper set is designed for Toyota RAV4 models from 2019 to 2024 and also fits select Mazda 5 vehicles. It includes front and rear blades for a complete replacement, with Teflon-coated rubber for smooth, quiet wiping and reliable all-weather performance. The easy-install design helps match the original wiper arm structure for a simple, secure fit.
What You Need
- Correct-size replacement wiper blades for your Tundra
- The correct adapter from the blade kit, if the blade includes multiple adapters
- Clean cloth or towel to protect the windshield
- Safety glasses
- Small flat screwdriver, only if the locking tab is hard to release
Choose the Right Blade Type
Choose exact vehicle fitment before choosing a blade style. Beam blades have fewer exposed frame joints, hybrid blades add a protective outer shell, and conventional blades use an articulated frame. Winter blades may help in snow and freezing rain, but blade style does not override connector compatibility. The adapter, length, arm clearance, and wiping pressure still have to match your truck.
| Blade type | Best for | What to check |
|---|---|---|
| Beam | Snow, ice, curved glass | Correct adapter and length |
| Hybrid | All-around driving | Connector compatibility |
| Conventional | Mild climates and lower cost | Confirm that the blade is offered for your connector |
| Winter | Heavy snow and freezing rain | Clearance, adapter, and wiping pressure |
Safety Precautions Before You Start
Warning: Wiper arms are spring-loaded. Keep control of the arm any time the blade is removed. If the bare arm snaps against the glass, it can crack or chip the windshield.
Park on level ground, turn the truck off, set the wiper switch to off, and keep automatic or rain-sensing operation disabled while you work. Before lifting an arm, confirm that it clears the hood without force. Toyota’s general wiper guidance warns that some vehicles can have hood interference, so stop if the arm cannot lift freely and check the exact model-year owner’s manual.
2022+ Tundra note: Do not confuse Toyota’s wiper-lever procedure for placing the active front spoiler in its service position with a wiper-arm service position. The documented procedure moves the spoiler, not the windshield wiper arms.
How Do You Remove an Old Toyota Tundra Wiper Blade?
Work on one blade at a time so the other side remains installed as an orientation reference. The exact release motion depends on the connector fitted to your Tundra.
1. Lift the Wiper Arm Carefully
Confirm that the arm clears the hood, then lift it away from the windshield until it is stable. Place a folded towel on the glass beneath the arm and keep control of the spring-loaded arm while the blade is removed.
2. Release a 2000–2006 Small J-Hook Blade
On commonly cataloged 2000–2006 fitment, look for the curved J-shaped end of the wiper arm. Rotate the blade enough to reach the adapter’s release tab, press the tab, and slide the blade toward the open end of the hook. Once the adapter clears the hook, lift the blade away without bending the metal arm.
3. Release a 2007–2021 Pinch-Tab Blade
On commonly cataloged 2007–2021 Tundras, locate the two release tabs where the blade connects to the arm. Squeeze the tabs together and pull or pivot the blade in the direction shown by the replacement-blade instructions until it releases. Keep the motion in line with the connector instead of twisting the arm.
4. Release a 2022–2026 Push-Button or Top-Lock-Style Blade
On current-generation Tundras, press the release button or latch on the blade connector, then slide the blade straight away from the arm in the direction allowed by the adapter. Aftermarket brands can use different adapter names and locking covers, so follow the diagram supplied with the exact replacement blade if the release mechanism differs.
Once the old blade is free, keep the bare metal arm under control and do not allow it to rest directly on the windshield.
Pro Tip: Take a quick photo of the old blade and connector before removing it. The photo helps you match the adapter direction if the replacement kit includes several connector pieces.

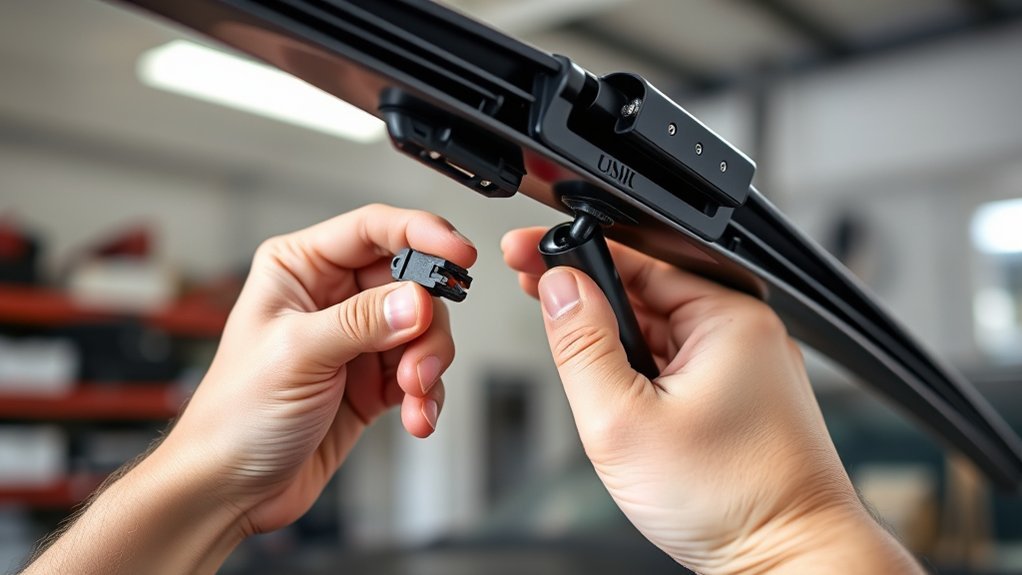

How Do You Choose the Correct Wiper Adapter?
Match the replacement adapter to the connector already on your Tundra’s wiper arm. Do not choose an adapter only because the blade length is correct. A 24-inch blade, for example, can be sold with several different connector systems.
| Model-year range | Connector clue | Removal clue | Installation check |
|---|---|---|---|
| 2000–2006 | Curved small J-hook at end of arm | Press adapter tab and slide toward the open end of the hook | Hook is fully seated inside the adapter and the lock engages |
| 2007–2021 | Two pinch tabs at blade-to-arm connection | Squeeze tabs and release blade in line with the connector | Tabs return fully and the blade does not pull free |
| 2022–2026 | Push-button or top-lock-style connection | Press the button/latch and slide the blade away from the arm | Button or locking cover is fully seated and blade passes a tug test |
| Connector does not match | New adapter looks different from the original arm connection | Stop rather than forcing the blade | Recheck exact-year and blade-brand fitment before installation |
Set the correct adapter into the new blade in the direction shown on the blade packaging. It should seat cleanly and feel solid. If the adapter rocks, binds, will not sit flush, or looks fundamentally different from the old connector, stop and recheck the blade’s vehicle fitment.
[Products Worth Considering]
This front wiper blade set is designed as a direct replacement for select Toyota Corolla and RAV4 models, helping restore clear visibility in rain and road spray. Built for smooth, quiet performance with an easy plug-and-play installation, it includes both blades needed for the front windshield and is made to support dependable everyday driving.
These MOTIUM windshield wiper blades deliver clear, streak-free wiping for improved visibility in rain, snow, and extreme heat. Designed for quiet, smooth operation and easy installation, they include both driver and passenger blades for a quick replacement solution that helps keep driving safer in all seasons.
AUTOBOO windshield wiper blades are designed to deliver smooth, streak-free visibility in a wide range of weather conditions. The bracketless, aerodynamic design helps reduce noise and wind drag while the memory spring steel construction maintains even pressure for consistent windshield contact. Built for quick installation on compatible U/J hook wiper arms, these blades offer reliable performance and quiet operation.

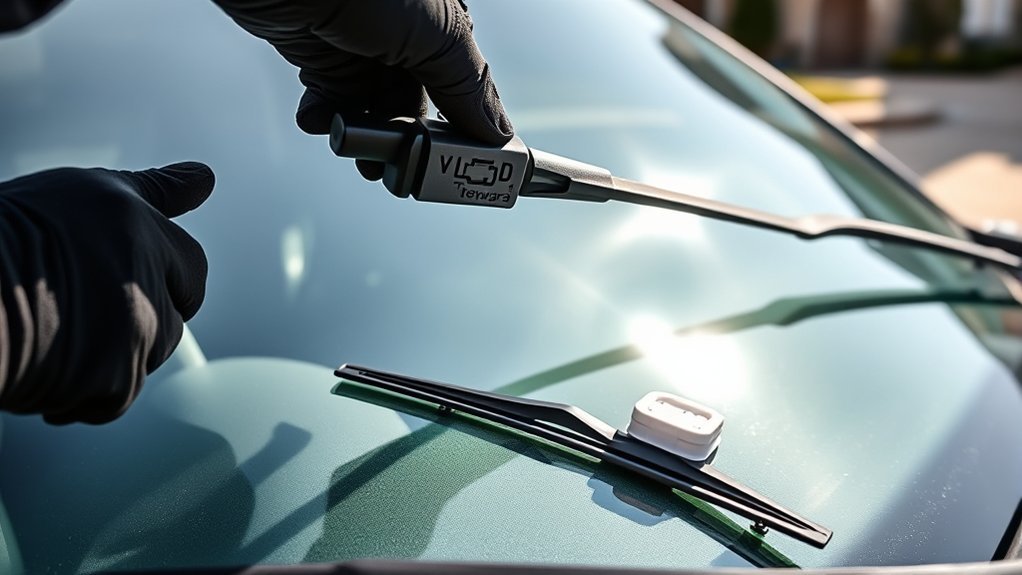

How Do You Install the New Toyota Tundra Wiper Blade?
Line up the new blade and its correct adapter with the wiper arm. Slide or rotate the blade into the connector using the motion specified for that adapter until you hear or feel the locking mechanism engage.
Check the lock visually. A J-hook should sit fully inside its adapter, pinch tabs should return to their locked position, and a push-button or top-lock-style connector should sit flush without a partly depressed button or raised cover.
After the lock engages, tug the blade gently but firmly away from the arm. It should not slide off, rattle loose, or shift in the adapter. If it moves, remove it and reinstall it before lowering the arm.
Note: Do not force a blade that does not slide or lock smoothly. A forced adapter can crack, lock only halfway, or detach while driving. Recheck the model-year fitment and adapter before continuing.
How Do You Check That the New Wiper Blade Is Secure?
Lower the wiper arm slowly back onto the windshield. Check that the rubber edge sits flat against the glass and that the blade is not upside down, twisted, or trapped under the arm.
Repeat the process on the second side. When both blades are installed, spray washer fluid and run the wipers on low speed first. Watch for full, smooth sweeps, even contact, correct overlap, and the normal parked position.
Warning: Avoid testing new blades on a dry windshield. Dry wiping increases friction and can drag grit across the glass or make a new blade chatter.
When to Replace Toyota Tundra Wiper Blades
Toyota says windshield wiper blades usually last about 6–12 months, but this is not a fixed replacement schedule. Heat, ice, salt, dust, storage conditions, blade quality, and use can shorten or extend their life. Replace the blades sooner whenever visibility or wiping performance drops:
- Streaks or water trails after each pass
- Skipping, chatter, or squeaking
- Cracked, torn, glazed, or hardened rubber
- Uneven contact at the blade ends
- Missed areas in the driver’s line of sight
- Metal or plastic parts touching the glass
Visibility check: If a blade leaves a missed area or water band in the driver’s normal line of sight, clean and inspect it immediately. Correct the fit or replace the blade before relying on it in rain or snow.
Why Are New Toyota Tundra Wiper Blades Streaking or Chattering?
New Blade Will Not Lock
Remove the blade and check the model-year fitment and adapter direction. Make sure you are using the adapter intended for your Tundra’s connector rather than simply the first adapter in the package. Reinstall until the locking mechanism seats completely, then tug-test it again.
Blade Streaks Right Away
Clean the windshield with automotive glass cleaner and wipe the rubber edge with a damp cloth. If streaking continues, check for a shipping protector left on the blade, damaged rubber, contamination on the glass, or a bent wiper arm.
Blade Chatters or Skips
Chatter can come from dry or dirty glass, stiff or damaged rubber, poor arm pressure, or an adapter that holds the blade at the wrong angle. Clean the glass and blade edge first, then confirm that the blade sits flat and the adapter is fully seated.
Blade Lifts at Highway Speed
Check that the blade is fully locked and that any built-in spoiler faces the direction specified by the manufacturer. If the blade is incompatible with the arm or windshield curve, replace it with a vehicle-listed blade rather than trying to modify the adapter.
One Wiper Does Not Move or Parks Incorrectly
If the problem is arm movement rather than the rubber blade itself, the fault may be outside the scope of a blade replacement. A loose arm, damaged splines, linkage problem, motor issue, or electrical fault can cause one or both wipers to stop or park incorrectly. See the Tundra wipers not working: linkage and motor diagnosis guide for mechanical troubleshooting.
Frequently Asked Questions
What size wiper blades does a Toyota Tundra use?
Common U.S. fitment catalogs list 19-inch driver and passenger blades for 2000–2006 Tundras, 26-inch driver and 22-inch passenger blades for 2007–2021 models, and 24-inch blades on both sides for 2022–2026 trucks. Confirm the exact model year and blade-brand fitment before ordering.
What type of wiper connector does a Toyota Tundra use?
Common fitment catalogs show a small J-hook style for 2000–2006 Tundras, a pinch-tab connection for 2007–2021 models, and a push-button or top-lock-style connection for 2022–2026 trucks. Adapter names can vary by blade manufacturer, so confirm the exact replacement package for your model year.
Do Toyota Tundra wipers need to be placed in a service position?
Do not assume they do. Before lifting a wiper arm, confirm that it clears the hood without force and check the owner’s manual for your exact year if clearance is uncertain. On 2022+ Tundras, the documented wiper-lever procedure that places a component in a service position is used for the active front spoiler, not as evidence of a windshield-wiper service position.
Are 2022–2026 Toyota Tundra wiper blades the same size?
Current fitment catalogs commonly list 24-inch front blades on both the driver and passenger sides for 2022–2026 Tundras. Connector and adapter terminology can differ between replacement-blade brands, so verify exact vehicle fitment even when both blade lengths are correct.
How often should Toyota Tundra wiper blades be replaced?
Toyota says wiper blades usually last 6–12 months, but condition matters more than the calendar. Replace them sooner if they streak, skip, squeak, leave missed areas, or show cracked or hardened rubber.
Why do new wiper blades streak or chatter?
Clean the windshield and rubber edge first. Then check for a shipping protector, damaged rubber, an incorrectly seated adapter, a twisted blade, poor arm pressure, or dry glass. Test again with washer fluid after correcting the problem.
How do I know the new wiper blade is locked?
The connector should sit fully in its locked position and stay attached during a gentle tug test. If the blade slides, rocks, a pinch tab remains compressed, or a push button or cover remains partly open, remove the blade and reinstall it before lowering the arm.
Conclusion
You can replace Toyota Tundra wiper blades safely when you match the blade size and connector to the truck’s model year before touching the arms. Common catalog fitment changes from 19″/19″ on 2000–2006 trucks to 26″/22″ on 2007–2021 models and 24″/24″ on 2022–2026 Tundras. Protect the windshield, release the correct connector without force, lock and tug-test each new blade, then finish with washer fluid and a low-speed sweep. If the blades wipe correctly but an arm does not move or park normally, diagnose the wiper arm, linkage, motor, or electrical system instead of repeatedly replacing blades.
