Toyota Tundra suspension wear signs include uneven or cupped tire wear, clunks over bumps, repeated bouncing, steering wander, nose-diving while braking, and a rear end that sags under normal load. Stop driving and arrange an inspection if the truck has severe steering looseness, visible joint separation, a broken spring, sudden wheel movement, or a new pull after an impact.
Your inspection must match the truck’s generation. U.S.-market 2000–2021 Tundras use rear leaf springs, while the 2022 redesign introduced a coil-spring multi-link rear suspension. Start with tires and a ground-level visual check. Road-test only if the truck still feels controllable, then prioritize loose joints, leaking shocks, damaged springs, and alignment-related wear before comfort upgrades.
Quick Answer
A Tundra suspension likely needs service if you see cupped or uneven tire wear, hear clunks or squeaks, feel steering wander, notice excessive bounce after bumps, or find leaking shocks, torn boots, joint play, cracked bushings, sagging leaf springs, or damaged rear coils. Treat loose steering parts, separated ball joints, broken springs, and wheel movement as stop-driving faults. On older trucks or certain 2022–2023 Tundra HV TRD Pro models, also verify relevant recall or service-campaign history by VIN before assuming the symptom is ordinary wear.
Key Takeaways
- Do not call the front suspension “MacPherson struts.” Tundras use front coil-over shock assemblies with double-wishbone suspension geometry.
- Check the rear suspension by generation: 2000–2021 models have leaf springs, while 2022+ models have a coil-spring multi-link rear setup, with air suspension and AVS available on some trims.
- Loose ball joints, damaged control-arm bushings, bad tie rods, broken springs, and severe shock leaks are safety-critical repairs, not comfort upgrades.
- Older Tundras have documented lower-ball-joint recall history, so VIN and campaign verification matters before replacing safety-critical front-suspension parts.
- Certain 2022–2023 Tundra HV TRD Pro vehicles were covered by Toyota Limited Service Campaign 24TD01 for premature outside-shoulder tire wear related to the original front-toe setting.
- After replacing suspension or steering parts, torque hardware to the correct Toyota service specification and get an alignment when the repair affects suspension geometry.
At a Glance
| Time Required | 30–60 minutes for a careful visual inspection; longer if wheels are removed |
| Difficulty | Moderate; advanced if checking loaded ball-joint play or replacing parts |
| Tools Needed | Flashlight, gloves, tire-pressure gauge, wheel chocks, floor jack, jack stands, pry bar, torque wrench, and Toyota service information for your exact model year |
| Cost Range | Inspection cost depends on whether you already own lifting equipment; repair cost varies by model year, trim, parts quality, and local labor rates |
What Are the Toyota Tundra Suspension Wear Signs?
Start with the signs you can feel, hear, and see. Uneven tire wear, especially inner-edge wear, outer-edge wear, feathering, or cupping, can point to alignment problems, weak damping, worn bushings, loose ball joints, or tire-pressure issues. The National Highway Traffic Safety Administration recommends regular tire checks for inflation, treadwear, damage, rotation, balancing, and alignment because tire condition is a major safety factor.
On the road, watch for extra bouncing after bumps, a floaty feeling at highway speed, rear-end sway while towing or hauling, nose-diving during braking, or a steering wheel that no longer returns cleanly to center. Listen for clunks over driveways and potholes, squeaks during low-speed turns, popping when backing out of a parking space, or rattles from the sway bar area.
| Symptom | Check first | Urgency |
|---|---|---|
| Repeated bounce or nose-dive | Shock leaks, mounts, tire cupping, and spring condition | Inspect soon; stop if control is poor |
| Clunk over small bumps | Sway links, bushings, shock mounts, loose hardware, and ball joints | Diagnose before towing or a long trip |
| Steering wander or wheel movement | Tie rods, ball joints, control-arm bushings, wheel bearings, and alignment | High priority; do not drive if severe |
| Rear sag or frequent bottoming | Payload, leaf springs or rear coils, bump stops, air suspension, and shocks | Unload and inspect before hauling |
Warning: Do not keep driving if the truck has severe steering looseness, a loud metal-on-metal clunk, visible ball-joint separation, a broken spring, a wheel that shifts in the wheel well, or a sudden pull after hitting a curb or pothole. Have it inspected before the next trip.
Which Suspension Does Your Tundra Use?
The most important update to this checklist is model-year accuracy. A 2007 Tundra and a 2024 Tundra do not use the same rear suspension design.
| Model years | Front suspension | Rear suspension | Inspection focus |
|---|---|---|---|
| 2000–2021 | Independent double-wishbone with coil-over shocks | Live axle with multi-leaf springs | Control arms, ball joints, shocks, sway links, leaf-spring packs, shackles, U-bolts, and axle-side mounts |
| 2022 and newer | Newer double-wishbone design with front coil-over shocks | Coil-spring multi-link rear suspension; some trims offer rear air suspension or Adaptive Variable Suspension | Control arms, ball joints, shocks, rear coils, rear links, track/lateral control components, air springs if equipped, and sensor wiring |
Toyota’s 2021 Tundra brochure lists an independent double-wishbone front suspension and a live axle with multi-leaf rear suspension for that model year. Toyota’s 2022 Tundra launch information says the redesigned truck moved to a multi-link rear suspension that replaces leaf springs with coil springs, while also using a newly developed double-wishbone front suspension.
[Products Worth Considering]
This heavy-duty ball joint press kit makes it easier to remove and install press-fit components like ball joints, U-joints, and brake anchor pins on many 2WD and 4WD vehicles without removing the control arm. Built from forged steel with corrosion-resistant black oxide adapters, it is designed for reliable performance and long service life. The included 4WD adapter and organized carrying case make it a practical choice for automotive suspension and steering repairs.
This all-in-one front end service kit is designed to help remove stubborn ball joints, tie rod ends, and pitman arms on a wide range of vehicles. Built from hardened alloy and organized in a portable ABS case, it offers reliable performance for both professional mechanics and DIY repairs.
This 2-piece suspension tool set combines a compact strut spreader with a high-leverage lower control arm prying tool to help speed up safe suspension service. Designed for many FWD, import, and domestic vehicles, it supports strut, hub, ball joint, and control arm work while helping reduce the risk of damage to surrounding components. Heavy-duty steel construction makes it a dependable choice for mechanics and serious DIY suspension repair.
Should You Check for Tundra Suspension Recalls?
Yes. Before ordering ball joints, steering parts, or other safety-critical components, search your VIN through the NHTSA recall lookup and ask a Toyota dealer to check completed and open recalls, campaigns, and service history. NHTSA explains that a VIN result may not show a recall that was already repaired, a recently announced campaign whose VIN list is incomplete, or some recalls older than 15 years.
A zero-result public VIN search therefore does not prove that no historical campaign applied to an older Tundra. Keep recall verification separate from diagnosis: a clunk, loose steering, or visible joint play still needs inspection even when no open recall appears.
Older Tundra Lower-Ball-Joint Recall History
Older first-generation Tundras have documented front lower-ball-joint recall history. NHTSA campaign 05V-225 included certain 2002–2004 Tundras and warned that excessive lower-ball-joint wear could lead to separation from the steering knuckle and loss of steering control. A later campaign, 07V-013, also involved front lower-ball-joint replacement on affected Toyota vehicles, including certain Tundras.
Do not assume every Tundra from those years was included, and do not assume an older recall is still open. VIN and production range determine eligibility, and an older truck may already have received the remedy. If you are buying or diagnosing a first-generation Tundra with unknown history, ask Toyota to verify whether applicable lower-ball-joint campaigns were completed.
2022–2023 Tundra HV TRD Pro Tire-Wear Campaign
Toyota Limited Service Campaign 24TD01 covered certain 2022–2023 Tundra HV TRD Pro vehicles. Toyota said the original factory front-wheel toe setting could cause excessive and premature wear on the outside shoulders of the tires. The published campaign offered inspection, alignment, and tire replacement when Toyota’s criteria were met.
The campaign documentation states that its free-service period ended March 20, 2025. If you are diagnosing one of these trucks now, ask a Toyota dealer to verify whether 24TD01 applied to the VIN and whether the campaign work was completed. Do not assume current free coverage based on the old campaign document.
Which Tundra Suspension Parts Commonly Wear?
After spotting signs like uneven tire wear or clunking, check the parts that directly affect alignment, damping, and steering control. Heavy payloads, rough roads, oversized tires, towing, off-road use, and lift kits can all shorten service life.
- Front coil-over shocks: Look for wet oil trails, damaged dust boots, dented bodies, worn mounts, and weak rebound control.
- Upper and lower control-arm bushings: Check for cracking, separation, metal-to-metal contact, or arm movement under braking.
- Ball joints: Inspect for torn boots, rust powder, grease loss, vertical play, rotational looseness, or popping noises. On an older first-generation truck, also verify applicable lower-ball-joint recall history by VIN.
- Tie rods and steering rack boots: Look for wheel play, torn boots, leaking grease, or steering looseness.
- Sway bar links and bushings: Check for play, split rubber, missing hardware, and clunks over small bumps.
- CV boots on 4WD models: Look for cracks, grease sling, clicking under acceleration while turning, or boot stretch after a lift.
- Rear shocks and mounts: Check for leaks, loose bushings, cracked mounts, and poor rebound control.
- Rear springs and links: Check leaf packs on 2000–2021 trucks; check rear coils, links, and air-suspension parts on 2022+ trucks.
Note: A light film of dust on a shock is not the same as a failed shock. Treat wet oil running down the shock body, repeated bouncing, tire cupping, or poor control as stronger evidence of shock failure.
[Products Worth Considering]
This master ball joint removal kit gives you the tools needed to remove and install ball joints, tie rod ends, Pitman arms, and other front-end components. It is designed for broad compatibility with many GM, Chevrolet, Ford, and Dodge vehicles, including a range of light trucks, vans, and SUVs. Built from forged steel and stored in a molded ABS case, it offers durable performance and organized portability for garage or shop use.
This front stabilizer sway bar link set is designed to restore smooth, controlled handling and reduce clunking noises caused by worn suspension components. Built with a zinc-nickel alloy coating, carbon steel, and reinforced ball studs, it offers strong corrosion resistance and durable performance for a wide range of Toyota, Lexus, and Scion models. It is engineered for straightforward installation and reliable OE-style fitment.
This color coded tire tread depth gauge helps you quickly check tire wear and monitor when replacement is needed. Calibrated in easy-to-read 32nds with clear red, yellow, and green ranges, it offers fast visual results for cars, trucks, motorcycles, and other passenger vehicles. The pocket clip makes it simple to keep on hand for routine maintenance and safety checks.
What Can Mimic a Tundra Suspension Problem?
Not every clunk or vibration comes from the suspension. Before buying parts, check for loose skid plates, running boards, spare-tire hardware, bed cargo, exhaust heat shields, brake hardware, wheel bearings, damaged wheels, and driveline play. A loose item may make noise over bumps, while a tire or wheel problem may cause a speed-related vibration that feels like suspension shake.
Use the symptom pattern to narrow the search. A clunk tied to steering input points you toward joints and steering parts. A vibration that rises with road speed points more strongly toward tires, wheels, bearings, or driveline components. A pull by itself also does not prove that a suspension part has failed; tire condition, tire pressure, braking, alignment, road crown, and mechanical looseness can overlap. Confirm the source before replacing shocks or control arms.
How Do You Inspect a Tundra Suspension Safely?
Use this order so you do not chase symptoms blindly. If you are not comfortable lifting a full-size truck or testing steering and suspension joints, have a qualified technician inspect it.
- Park safely: Use level ground, set the parking brake, place the transmission in Park, and chock the wheels that stay on the ground.
- Check tires first: Set cold tire pressure to the door-label specification. If you need help identifying the placard information, use this Toyota Tundra tire-label guide. Then inspect tread depth, cupping, feathering, inner-edge wear, outer-edge wear, and sidewall damage.
- Do a low-speed listening check: If the truck feels safe to drive, listen over small bumps, while turning into a driveway, and during light braking. Stop if steering feels loose or unstable.
- Inspect without lifting: Look under the truck with a flashlight for leaking shocks, torn boots, cracked bushings, shiny metal contact points, sagging ride height, broken spring parts, or missing hardware.
- Compare ride height: On level ground with equal tire pressure and normal unloaded cargo, measure left and right from the same fixed body or frame reference point. A side-to-side difference is a clue, not a diagnosis.
- Lift only with proper support: Use the correct Toyota lift points, support the truck with jack stands, and never work under a vehicle held only by a jack.
- Use wheel play only as a screening check: With the truck supported correctly, rocking the tire at 12 and 6 o’clock and at 3 and 9 o’clock may reveal obvious looseness in a joint, bearing, or steering component. It is not a definitive ball-joint test. Any clunk or movement needs diagnosis with the model-specific Toyota procedure.
- Follow the correct ball-joint procedure: Loaded and unloaded joint checks differ by suspension design and model year. Do not declare a ball joint safe from a generic wheel-rock test alone.
- Use a pry bar carefully: Lightly load control arms, sway links, and bushings to check for separation or movement. Do not force parts hard enough to damage boots or mounts.
- Document findings: Note which side is noisy, which tire is wearing, where the leak is, and whether the issue changes under braking, turning, towing, or load.
Pro Tip: Diagnose in pairs. If the right-front tire is cupped and the right-front shock is leaking, the shock is a likely suspect. If both front tires are feathered, alignment, toe settings, tie rods, or control-arm bushings may be more likely than one failed shock.
How Do You Inspect the Front Suspension?
Start with the front coil-over shock assemblies, upper and lower control arms, ball joints, tie rods, and sway bar links. These parts control steering geometry, tire contact, braking stability, and bump control.
Front Shock Checks
Look for oil leaking down the shock body, damaged lower mounts, cracked upper mounts, torn dust boots, bent shafts, or uneven ride height. A simple bounce test can help, but it is not perfect on a heavy pickup. If the front end keeps bouncing after a firm push, dives sharply during braking, or feels floaty after a dip in the road, the shocks need closer inspection.
Ball Joint Checks

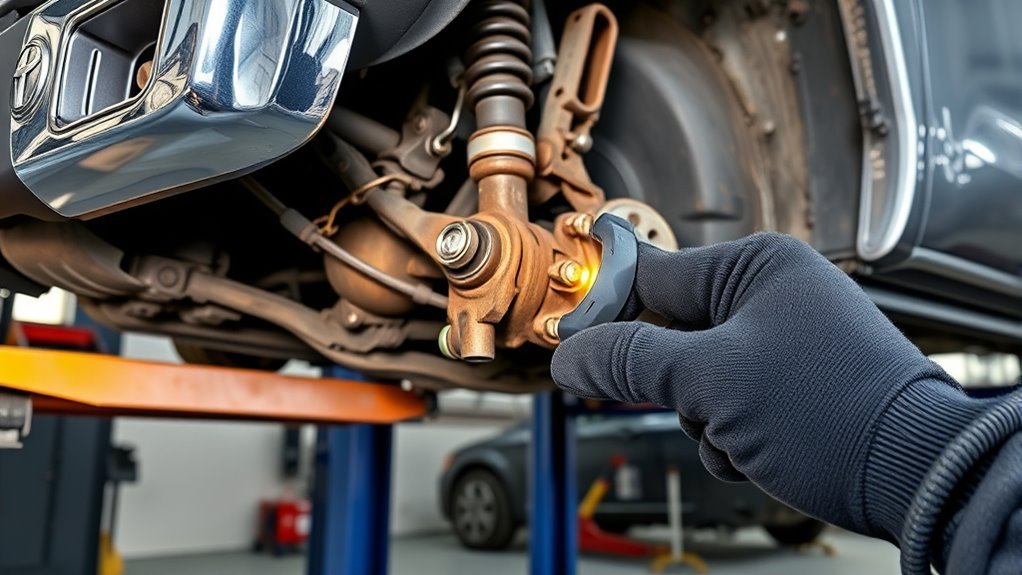

Inspect ball-joint boots first. A torn boot lets dirt and water into the joint, which can accelerate wear. With the truck safely supported, check for play using the method recommended for your exact model year in Toyota service information. A general wheel-play check can reveal an obvious problem but does not replace the specified loaded or unloaded joint test. Worn ball joints can create clunks, steering looseness, wandering, and uneven tire wear.
Control Arm and Bushing Checks
Check upper and lower control-arm bushings for cracking, swelling, separation, or metal sleeve movement. A bad bushing can shift alignment under braking or cornering, even if the alignment looks acceptable on a rack while the truck is sitting still.
Tie Rod, Sway Bar and CV Boot Checks
Rock the front tire at 3 and 9 o’clock and watch the inner and outer tie rods. Any delay, knocking, or visible looseness should be diagnosed before alignment. For sway bar links, listen for light clunks over small bumps and look for split bushings or loose link ends. On 4WD models, inspect CV boots for cracks, grease sling, and stretching, especially if the truck has been lifted.
How Do You Inspect the Rear Suspension?
Once you have checked the front suspension, move rearward to inspect rear shocks, springs, mounts, sway bar attachments, and axle-control parts. The rear suspension carries payload, controls towing stability, and helps keep the truck settled over bumps.
Rear Checks for 2000–2021 Leaf-Spring Tundras
- Check leaf-spring packs for cracked leaves, shifted leaves, missing clips, rust jacking, and sagging ride height.
- Inspect shackles, hangers, bushings, and U-bolts for looseness, rust damage, or movement marks.
- Look for leaking rear shocks, worn shock bushings, dented shock bodies, or loose mounts.
- Check the bump stops and axle contact points for signs the truck is frequently bottoming out.
- Compare left and right ride height with the truck unloaded and parked on level ground.
Rear Checks for 2022+ Coil-Spring Tundras
- Inspect rear coil springs for cracks, broken ends, uneven ride height, and displaced isolators.
- Check multi-link rear arms and bushings for cracks, separation, loose hardware, or shiny movement marks.
- Inspect rear shocks for leaks, damaged boots, worn bushings, or dented bodies.
- If equipped with rear air suspension, look for air-spring cracks, uneven height, compressor cycling, warning messages, and damaged height-sensor links.
- Do not loosen air lines or rely on the self-leveling system to support the truck. Use Toyota’s model-specific disabling, lifting, and depressurizing procedure before air-suspension work.
- If equipped with Adaptive Variable Suspension, do not ignore warning lights, damaged wiring, or fluid leaks around the shock body.
Worn rear shocks often show up as bounce, rear-end hop, trailer sway, poor control over washboard roads, or tire cupping. Spring problems show up more as ride-height loss, uneven stance, bottoming, or load-control issues.
What Do Tundra Tire-Wear Patterns Mean?
Tire wear is one of the easiest ways to spot a suspension or alignment issue early, but one wear pattern can have more than one cause.
| Wear pattern | Common causes to check |
|---|---|
| Inner-edge wear | Toe/camber alignment, worn control-arm bushings, ball-joint play, ride-height changes, or lift-kit geometry |
| Outer-edge wear | Underinflation, alignment, hard cornering, worn steering parts, overloaded driving, or a model-specific alignment concern |
| Cupping or scalloping | Weak shocks, imbalance, worn suspension parts, or neglected rotation |
| Feathered tread | Toe alignment, tie-rod wear, or bushing movement |
| One tire wearing faster | Localized shock, ball-joint, bearing, brake, alignment, or tire-pressure issue |
Model-specific note: Toyota documented premature outside-shoulder tire wear on certain 2022–2023 Tundra HV TRD Pro vehicles under Limited Service Campaign 24TD01. If that description matches your truck, verify campaign history by VIN before treating the wear pattern as proof that a shock, ball joint, or bushing has failed.
Rotation can help normal tread wear stay even, but it cannot repair looseness, failed damping, or bad alignment. For Toyota-specific interval guidance, see the Tundra tire-rotation guide.
Which Tundra Suspension Repairs Come First?
Because suspension faults affect handling, braking stability, tire wear, and towing control, fix safety-critical items before comfort upgrades. Use the table below to triage what to repair first.
| Priority | Fix immediately if you find | Why it matters |
|---|---|---|
| High | Loose ball joints, loose tie rods, cracked control arms, severe bushing separation, broken springs, loose mounts, or wheel movement | These can affect steering control, wheel position, and safe braking. |
| High | Shock leaking heavily, shock mount broken, rear air suspension sagging, or truck bottoming under normal load | Loss of damping or ride height can reduce tire contact and towing stability. |
| Medium | Cupped tires, light shock dampness without active running oil, cracked but intact bushings, noisy sway links, or uneven ride height | These can become expensive if ignored and can shorten tire life. |
| Lower | Comfort upgrades, towing upgrades, or off-road shock upgrades with no failed part | Useful upgrades, but they should wait until safety and alignment issues are fixed. |
Set your inspection frequency based on use. A Tundra that tows, hauls, runs oversized tires, drives off-road, or spends time on rough roads should be inspected more often than a lightly used commuter. Check tires and visible suspension parts at oil changes, after hard impacts, before long towing trips, and any time the truck develops a new noise or handling change.
[Products Worth Considering]
This smart tire tread depth gauge provides quick, accurate readings from 0 to 1 inch in 1/32-inch increments, helping drivers assess tire wear with confidence. Its color-coded display makes it easy to see tread condition at a glance, while the pocket clip adds convenient portability for garages, glove boxes, and on-the-go inspections. Designed for use on trucks, motorcycles, automobiles, and other passenger vehicles, it is a simple tool for safer tire maintenance.
These front stabilizer sway bar end links are designed to restore smooth, stable handling and reduce noise and vibration during turns and over bumps. Compatible with select Toyota, Prius, and Scion models, they offer a reliable replacement built to meet manufacturing standards with corrosion-resistant coating and a strong, durable body.
This smart color coded tire tread depth gauge makes it easy to check tread wear at a glance with clear red, yellow, and green ranges. Calibrated from 0 to 1 inch in 1/32 inch increments, it helps you quickly assess tire condition for safer driving and timely replacements. The pocket clip design makes it convenient to carry and use on trucks, motorcycles, cars, and other passenger vehicles.
What Should You Do After Suspension Repairs?
Suspension work is not finished when the new part is bolted on. Use Toyota repair information and service publications for the correct procedure and torque specifications for your exact model year, drivetrain, trim, and suspension package.
- Torque correctly: Use a torque wrench and follow the service manual. Rubber-bushed suspension pivot fasteners often require final tightening at the specified ride-height position rather than with the suspension hanging. Follow the model-specific procedure.
- Replace related hardware when required: Some fasteners, cotter pins, nuts, clips, and one-time-use parts should not be reused if the service procedure says to replace them.
- Align the truck: Get an alignment after replacing control arms, ball joints, tie rods, ride-height parts, or anything that changes steering or suspension geometry.
- Road test carefully: Start at low speed, listen for noises, confirm steering return, then check braking stability and highway tracking.
- Recheck the work: After a short drive, look for fluid leaks, loose hardware, shifted bushings, or new noises.
Note: Be careful with lift kits and major ride-height changes on 2022+ Tundras. Toyota says its TRD 3-inch lift kit was developed to retain Toyota Safety Sense functionality, which is a reminder that suspension geometry can affect camera, radar, alignment, and stability-system performance.
Frequently Asked Questions
How often should Tundra shocks be replaced?
No single replacement mileage fits every Tundra. Inspect shocks regularly, especially once the truck has higher mileage or sees towing, hauling, off-road use, rough roads, or oversized tires. Replace shocks when they leak, lose damping, cause repeated bouncing, contribute to tire cupping, or make the truck unstable.
How do you check Tundra ball joints?
Park on level ground, chock the wheels, and inspect the ball-joint boots for tears, grease loss, rust powder, and visible damage. If the truck must be lifted, support it correctly. A basic wheel-play check may reveal obvious looseness, but use the Toyota service-manual procedure for your exact model year to perform the definitive loaded or unloaded ball-joint test. If you feel clunking or see movement at the joint, do not ignore it.
Are 2022 and newer Tundras still leaf-spring trucks?
No. Toyota changed the Tundra rear suspension for the 2022 redesign. Older 2000–2021 Tundras use rear leaf springs, while 2022 and newer Tundras use a coil-spring multi-link rear suspension. Some newer trims may also have rear air suspension or Adaptive Variable Suspension.
Were older Toyota Tundras recalled for lower ball joints?
Yes. NHTSA campaigns 05V-225 and 07V-013 included certain older Toyota trucks, including affected first-generation Tundras, for front lower-ball-joint concerns. Coverage was production- and VIN-specific, so do not assume every truck from a particular year was included. Ask Toyota to verify whether an applicable campaign was completed on your VIN.
Why do some 2022–2023 Tundra TRD Pro tires wear on the outside?
Toyota Limited Service Campaign 24TD01 covered certain 2022–2023 Tundra HV TRD Pro vehicles because the original factory front-toe setting could cause excessive and premature wear on the outside shoulders of the tires. The campaign’s published free-service period ended March 20, 2025, so ask Toyota to verify VIN eligibility, completion history, and any current assistance rather than assuming the old campaign is still open.
Do I need an alignment after replacing Tundra suspension parts?
Get an alignment after replacing control arms, ball joints, tie rods, ride-height parts, springs, or any part that affects suspension geometry. Alignment is also smart after curb hits, pothole impacts, lift-kit installation, or unexplained uneven tire wear. A repair that does not alter geometry may have different requirements, so follow the procedure for the exact part and model year.
Can I drive my Tundra with a suspension clunk?
A small sway-bar-link noise may not be as urgent as a loose ball joint, but you should not guess. If the clunk is loud, metallic, new after an impact, paired with steering looseness, or paired with uneven ride height, stop driving and inspect it before the next trip.
Can worn Tundra suspension parts cause vibration?
They can, but vibration is not specific to suspension wear. Weak shocks may allow wheel hop, and loose joints can add shake or instability. Speed-related vibration more often points to tire balance, tire damage, a bent wheel, a wheel bearing, or driveline trouble. Inspect tires and wheels first, then confirm suspension play before replacing parts.
What causes uneven tire wear on a Tundra?
Common causes include incorrect tire pressure, skipped rotation, wheel imbalance, alignment problems, weak shocks, worn ball joints, loose tie rods, damaged control-arm bushings, overloaded driving, or ride-height changes. On certain 2022–2023 Tundra HV TRD Pro vehicles, also verify whether Toyota Limited Service Campaign 24TD01 applied. Use the wear pattern as a clue, then confirm the cause with a tire, suspension, and alignment inspection.
Conclusion
Start with tire pressure, tread wear, visible leaks, and ride height on level ground. Then inspect the parts that match your model year: rear leaf springs on 2000–2021 trucks, or rear coils, links, air-suspension parts, and AVS wiring where equipped on 2022+ trucks. On an older first-generation Tundra, verify lower-ball-joint recall history; on certain 2022–2023 Tundra HV TRD Pro vehicles with outside-shoulder tire wear, verify campaign 24TD01 history. Stop driving for severe steering looseness, joint separation, broken springs, wheel movement, or a sudden pull after an impact. After repairs, follow Toyota torque procedures, align the truck when geometry is affected, and complete a careful low-speed road test before towing or taking a long trip.
Editorial basis: This guide uses Toyota-published suspension information, Toyota repair-information guidance, and NHTSA tire, recall, and campaign records. It is a source-based inspection guide and does not claim a hands-on teardown of every Tundra generation. It does not replace the Toyota repair procedure for your exact model year, drivetrain, trim, and suspension package.
