If your Toyota 4Runner keeps needing a jump after sitting, do not assume the battery is bad or that one voltage reading proves a parasitic drain. Start by checking the battery’s state of charge and health, then measure the current the vehicle uses after its electronic modules have gone to sleep. If the key-off draw remains excessive, isolate the responsible circuit with fuse testing and inspect everything powered by that circuit.
Quick Answer
To diagnose a 4Runner parasitic battery drain, first verify that the 12-volt battery itself is healthy. Then connect a fused digital multimeter in series at the negative battery cable, let the vehicle fully enter sleep mode, and check the stabilized key-off current. If it remains excessive, isolate the circuit with fuse testing or voltage-drop testing across the fuses.
Key Takeaways
- A low resting battery voltage does not by itself prove a parasitic drain; battery condition, state of charge, and charging-system performance must also be checked.
- As a general automotive screening guideline, a fully sleeping vehicle is often expected to draw less than about 50 mA, but the exact acceptable draw can vary by 4Runner model year, equipment, and Toyota service specifications.
- Modern modules may need roughly 10–45 minutes or longer to settle, so watch for a stable reading instead of relying on one fixed sleep time.
- Never crank the engine or operate high-current accessories while a conventional multimeter is connected in series on its current range.
- Common causes include interior lights, door or liftgate switches, stuck relays, dashcams, OBD-II devices, chargers, alarms, audio equipment, trackers, and modules that remain awake.
At a Glance
| Time Required | About 30–90 minutes for an initial test; intermittent drains may require longer monitoring |
| Difficulty | Intermediate electrical diagnosis |
| Tools Needed | Digital multimeter with fused current input, basic hand tools, fuse diagram, notebook or phone for recording readings; optional low-current DC clamp meter |
| Cost | Usually $0 if you already own a suitable meter; otherwise mainly the cost of diagnostic tools and any failed component |
Warning: When a multimeter is connected in series on its amp range, do not start the engine, switch on the headlights or blower, operate power seats/windows, or activate another high-current load. The resulting current can blow the meter’s fuse, damage the meter, create arcing, or interrupt vehicle electronics. Start on the meter’s highest fused DC-current range and follow the meter manufacturer’s instructions.

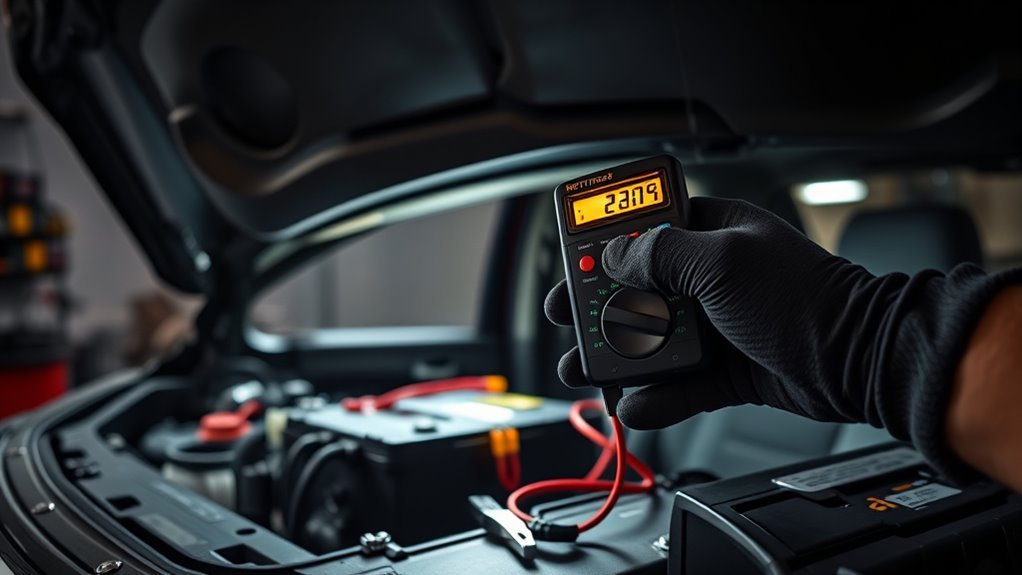

Quick Triage: 3 Signs Your 4Runner Has a Parasitic Drain
Three symptoms should make you investigate a possible key-off electrical drain: the engine repeatedly cranks slowly after the 4Runner sits, the battery needs frequent jump-starts even after it has been properly charged, or the battery’s resting voltage falls noticeably during a parked period.
However, none of those symptoms proves that a parasitic load is the cause. A weak battery, loose or corroded terminals, charging-system trouble, frequent short trips, cold weather, or a vehicle left in ACCESSORY mode can produce similar symptoms.
A rested 12-volt battery near 12.4 V is substantially less than fully charged according to common lead-acid battery voltage charts, but the voltage does not reveal why the battery lost charge. The useful diagnostic question is whether a healthy, charged battery is being discharged by abnormal current while the vehicle is supposed to be asleep.
Note: This guide covers multiple 4Runner generations. Electrical architecture, connected-services equipment, smart-key behavior, accessory functions, and Toyota’s allowable key-off-current specifications can differ by model year and trim. Use the applicable Toyota repair information when you need an exact factory specification.
Gather Tools and Prep the 4Runner for Testing
Use a digital multimeter that can safely measure DC current and has a fused high-current input, typically a 10 A jack. You will also need the correct fuse-panel diagram, basic hand tools, and a way to record readings. A sensitive low-current DC clamp meter can be useful because it may let you test without disconnecting the battery, but many general-purpose clamp meters do not have enough resolution for tens of milliamps.
[Products Worth Considering]
This smart automatic battery charger and maintainer helps keep automotive batteries charged and ready by delivering a full charge before switching to float mode for long-term maintenance. It supports 6V and 12V batteries with broad compatibility for lead-acid, AGM, gel, and lithium types, while built-in safety features like reverse polarity detection and spark-proof connection help ensure reliable use. Compact construction, included connection cables, and indicator lights make it a convenient choice for cars, SUVs, trucks, and storage maintenance.
This automotive test light combines a bright LED voltage display with quick polarity indication for fast, accurate circuit checks in a wide range of vehicle systems. It helps diagnose battery, charging, lighting, and fuse issues with a sharp stainless probe, long spring wire, and easy-to-use alligator clip for efficient troubleshooting.
The TOPDON BT100 helps you quickly check the health and charge status of 12V lead-acid batteries with clear analytical results, including state of health, state of charge, voltage, and cranking performance. It supports a wide range of battery types and vehicles, making it a practical tool for diagnosing starting and charging issues at home or in the shop. Compact and easy to use, it provides fast, reliable testing without needing to charge the device first.
Gather Multimeter and Tools
Before opening the battery circuit, confirm how your meter’s current inputs work. Move the red lead to the high-current jack specified by the meter manufacturer and select DC amps on the highest suitable range. Inspect the meter’s leads and fuse before testing.
| Tool | Purpose |
|---|---|
| Digital multimeter | Measure battery voltage and key-off current |
| Test light | Optional for simple powered-circuit checks; do not use it as a substitute for an accurate parasitic-current measurement |
| Spare fuses | Replace a fuse only with the correct rating if one is accidentally blown |
| Fuse diagram | Identify the components powered by a suspect circuit |
| Notebook or phone | Log current, time, fuse position, and changes |
| Timer | Track module sleep time and intermittent wake events |
Prep Vehicle for Testing
Park the 4Runner in a secure, ventilated area. Turn the ignition fully off, remove chargers from the power outlets, unplug unnecessary USB devices and OBD-II accessories, and switch off lights and accessories. If you must leave the hood open for battery access, make sure that doing so does not leave a hood-ajar input active on a model equipped with one.
Close the doors and liftgate or mechanically latch the door/liftgate switches where appropriate so the vehicle thinks they are closed. Do not lock yourself out. Keep the smart key well away from the vehicle so approaching it does not repeatedly wake the smart-key system.
Toyota documents battery-saving behavior for 4Runner smart-key systems, including changes that occur when an electronic key remains near the vehicle or when the smart-key system has been unused for an extended period. That is another reason to keep the key away while establishing a stable sleep-state reading.
Pro Tip: Before disconnecting anything, photograph the fuse-box layout and write down the starting battery voltage. During diagnosis, change only one thing at a time. That makes it much easier to tell which action actually changed the current.
Measure Parasitic Draw: Safe Meter Hookup and Sleep Timing
The basic test places the meter in series between the negative battery terminal and the disconnected negative cable so all key-off current flows through the meter. Fluke’s automotive procedure recommends starting on the high-current range, allowing the vehicle’s modules time to sleep, and then evaluating the stabilized draw.
[Products Worth Considering]
This KAIWEETS digital multimeter is a versatile tool for measuring AC/DC voltage, DC current, resistance, continuity, and diodes in home, automotive, and electrical applications. It includes pre-installed batteries, a carrying case, test leads, data hold, backlight, and overload protection for easier and safer everyday testing. Built with double fuses and rated for broad household and light professional use, it helps users diagnose electrical issues with confidence.
The NOCO GENIUS5 is an all-in-one battery charging and maintenance solution for 6V and 12V lead-acid and lithium batteries. It features temperature compensation, dead-battery recovery, desulfation, and safe long-term maintenance to help extend battery life and performance. Compact and versatile, it works with a wide range of vehicles and comes with mounting accessories and a warranty.
The ANENG SZ301 digital multimeter is a versatile testing tool for measuring AC/DC voltage, current, resistance, continuity, diode, capacitance, and live wire detection. It features a clear display, precise readings, and built-in safety protections including double fuses and overload protection, making it useful for electronics, automotive work, and household electrical troubleshooting. The kit includes a protective silicone case, test leads, and pre-installed batteries for convenient use right out of the box.
Safe Meter Connection
- Make sure the ignition is fully off and every unnecessary load is switched off.
- Set the multimeter for DC amps and connect the red lead to the meter’s fused high-current input.
- Disconnect the negative battery cable.
- Connect one meter lead to the negative battery post and the other to the removed negative cable so current passes through the meter.
- Secure the leads so they cannot slip off and reconnect unexpectedly.
- Do not start the engine or operate any high-current accessory while the meter remains in series.
- Watch the current fall as modules shut down.
For general automotive troubleshooting, Fluke describes less than about 50 mA after sleep as a typical normal level and more than about 100 mA as suspect. Treat those numbers as screening guidelines rather than a universal Toyota specification. A vehicle with factory or aftermarket equipment can behave differently, and the correct Toyota service specification for the exact year and configuration takes priority.
A 100 mA continuous draw equals 0.10 A × 24 hours, or about 2.4 amp-hours removed from the battery every day. At 200 mA, the loss doubles to about 4.8 amp-hours per day.
Allow Sleep Time
Do not judge the reading immediately after connecting the meter. Door modules, the security system, smart-key functions, multimedia equipment, and other controllers can remain awake for a period after shutdown.
Fluke advises allowing roughly 10–45 minutes for vehicle modules to enter sleep mode. The exact time can vary. Instead of assuming that every 4Runner must reach its final state at exactly 20 or 30 minutes, watch the meter until the draw falls in stages and remains stable.
- Keep doors, liftgate, and hood inputs in their normal closed state where possible.
- Keep the key away from the vehicle and avoid touching door handles.
- Do not open doors or activate accessories while waiting.
- Watch for current to step down as modules time out.
- Record the final stable reading and the time required to reach it.
If the current periodically rises and falls, note the size and timing of each event. That pattern may point to a module or accessory that wakes intermittently rather than a constant short or stuck load.
Fuse Pull Method
If the stabilized key-off draw is clearly excessive, isolate the responsible circuit. The traditional method is to remove one fuse at a time while watching the meter. A large, repeatable drop identifies a circuit that deserves further inspection.
- Record the sleeping baseline current.
- Remove one fuse and observe the meter.
- Record the fuse position and new current.
- Reinstall the fuse unless keeping it removed is necessary for the next diagnostic step.
- Continue until you find a circuit whose removal causes the excessive portion of the draw to disappear.
On a networked vehicle, however, pulling and reinstalling a fuse can wake modules and temporarily distort the measurement. If that happens, allow the vehicle to sleep again before comparing readings.
Use Voltage Drop Across Fuses When Pulling Fuses Wakes the Vehicle
An alternative is to leave the fuses installed and measure the tiny voltage drop across each fuse. Current flowing through a fuse creates a measurable voltage drop across its test points. With the correct fuse-type conversion information, that drop can identify circuits that are still carrying current without repeatedly disturbing the electrical system.
This method is especially useful when removing a fuse wakes several modules and forces you to restart the sleep timer. It also avoids repeatedly reseating dozens of fuses.
Pinpoint a 4Runner Parasitic Drain by Circuit
Finding the suspect fuse is only the first half of the diagnosis. A fuse can power several devices, connectors, relays, and modules. Once a circuit produces a meaningful current drop, use the 4Runner’s fuse map and the applicable wiring information to identify everything on that circuit.
| What You Observe | What It Suggests | Next Step |
|---|---|---|
| Current drops sharply when one fuse is removed | The unwanted load is probably on that circuit | Identify and disconnect components on that fuse one at a time |
| Current changes only temporarily, then rises again | Removing the fuse may have awakened another module | Restore the circuit, wait for sleep again, or use fuse voltage-drop testing |
| No single fuse removes the draw | The load may be on an unfused battery cable branch, charging circuit, multiple circuits, or an intermittent device | Inspect aftermarket wiring and move to circuit-level diagnosis |
| Draw disappears when an accessory is unplugged | The accessory or its wiring is likely responsible | Confirm by repeating the sleep test with and without that device |
Do not replace a module simply because its fuse changed the reading. Determine which device on the circuit is actually staying awake or drawing power. Disconnect suspected components one at a time and repeat the sleep test until the cause is confirmed.
[Products Worth Considering]
This automotive circuit tester checks low-voltage DC systems from 3-65V, making it useful for diagnosing headlights, taillights, fuses, sockets, and other vehicle wiring issues. The digital backlit display provides clear voltage readings with fine accuracy, while the bidirectional polarity indicator helps you test from either ground or positive. Built with a durable probe, insulated tip, and extra-long spring wire, it is designed for dependable everyday use in automotive and household electrical work.
This AstroAI clamp meter delivers accurate electrical testing for AC/DC voltage, AC current, resistance, capacitance, continuity, diode checks, and live wire detection in one compact tool. Its auto-ranging design, backlit LCD, flashlight, data hold, and audible/visual alerts make it practical for both home and industrial troubleshooting. Built with enhanced safety standards and non-contact voltage detection, it helps users diagnose electrical issues with greater confidence and convenience.
The KONNWEI KW208 is a versatile 12V battery tester designed to quickly analyze battery health, cranking performance, and charging system status for cars, trucks, boats, motorcycles, and more. It supports multiple battery types and provides clear guidance on whether a battery should be recharged or replaced, helping you diagnose issues before they become failures. With plug-and-play use, high accuracy, and multilingual support, it offers a convenient way to test batteries in-vehicle or out-of-vehicle.

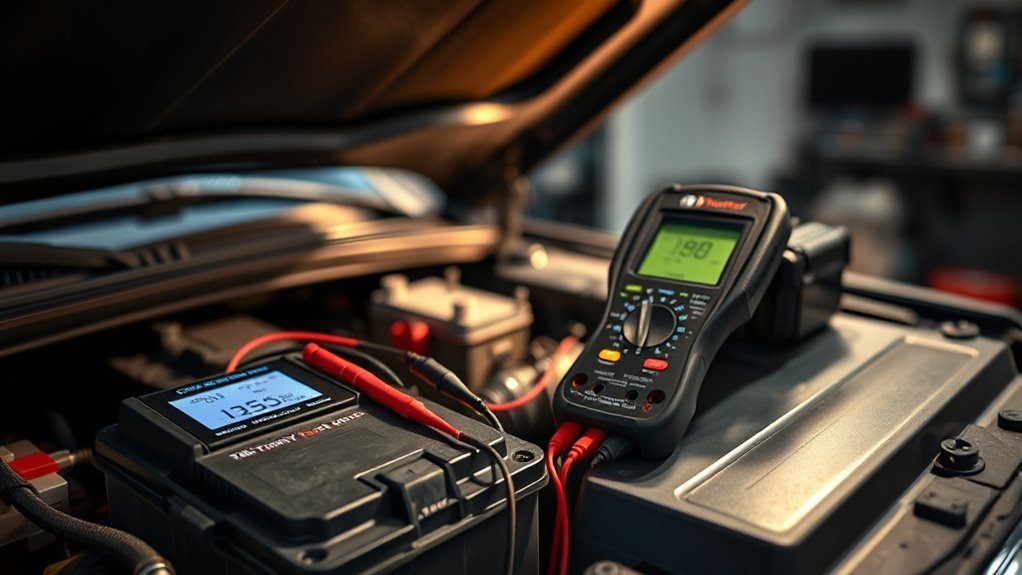

Check the Battery and Charging System to Avoid False Positives
A parasitic-drain test is much more useful when you start with a healthy, fully charged 12-volt battery. A deteriorated battery can go dead quickly even when the vehicle’s normal key-off current is acceptable.
Check Resting Battery Voltage
Measure battery voltage after the battery has rested and surface charge has dissipated. Published lead-acid battery charts commonly place a fully charged battery around the upper 12.6-volt range or higher depending on battery type and test conditions, while readings around 12.4 V indicate a significantly reduced state of charge.
Do not use one overnight voltage reading as proof of parasitic drain. Instead, fully charge the battery, confirm its condition, establish a known starting voltage, and compare the result after a controlled parked period.
Test Battery Capacity, Not Just Voltage
A battery can show reasonable open-circuit voltage and still have poor cranking capacity. Use a conductance tester or load tester that is appropriate for the battery type and follow that tester’s procedure.
For example, Clore Automotive’s carbon-pile load-testing instructions call for a sufficiently charged battery, a controlled 15-second load, and temperature-adjusted minimum voltage. Its chart lists 9.6 V at 70°F (21°C) for the specified test. Use the specification supplied with your particular tester rather than treating one universal voltage as correct for every battery and test method.
Check Charging-System Operation
With a conventional charging system operating, a voltage roughly in the 13.8–14.7 V range is a useful general check, but electronically controlled charging behavior can vary with battery state, temperature, electrical load, and model year. Use the applicable Toyota diagnostic information if the result is questionable.
Inspect battery terminals, cable connections, and engine/body grounds for looseness or corrosion. High resistance can cause slow cranking and poor charging that looks like a battery-drain problem.
Note: If the battery repeatedly fails a proper battery-health test, replace or repair that problem before spending hours tracing key-off current. Otherwise, a weak battery can keep creating symptoms even after the electrical draw is normal.
Common 4Runner Parasitic-Drain Culprits and Targeted Fixes
Once the battery and charging system pass their checks, focus on circuits that can remain powered after the 4Runner is parked. The exact equipment varies by model year, so diagnose the circuit instead of replacing parts by guesswork.
Interior, Cargo, and Courtesy Lights
A glove-box, dome, vanity, cargo, or courtesy lamp can stay on even when it is difficult to see from outside the vehicle. Check the associated switches and latches, and verify that the lamp actually turns off when its compartment or door is closed.
Door and Liftgate Switches
A misadjusted or intermittent door/liftgate switch can tell a body-control module that the vehicle is still open. That can keep lighting, keyless-entry, or other electronics awake. Look for an unexpected door-open indication and verify switch operation with appropriate scan data or electrical testing.
Relays That Stay Closed
A sticking relay can keep a circuit energized after shutdown. When a suspect fuse points to a relay-controlled load, verify the relay’s command and output rather than automatically replacing it. A relay that is hot long after shutdown can be a useful clue, but temperature alone is not a complete diagnosis.
Dashcams, OBD-II Devices, Chargers, and Other Accessories
Aftermarket equipment deserves early attention. Common examples include:
- Parking-mode dashcams
- OBD-II Bluetooth or Wi-Fi adapters
- GPS trackers
- Aftermarket alarm or remote-start systems
- Amplifiers and upgraded audio equipment
- USB adapters and phone chargers
- Trailer-brake or towing accessories
- Auxiliary lighting controllers
- Hardwired refrigerators or camping equipment
Toyota’s own Integrated Dashcam uses battery monitoring and low-voltage protection when parked. An aftermarket camera or incorrectly installed hardwire kit may behave differently, so temporarily disconnect non-factory accessories during diagnosis.
Smart-Key and Connected Features
Avoid repeatedly approaching the 4Runner with the electronic key while measuring sleep current. Toyota documents battery-saving behavior in the smart-key system, and interaction with the key can change the vehicle’s electronic state.
Newer 4Runners can also have functions that wake multimedia or connected systems before normal driving begins. Toyota’s 2025 4Runner pre-delivery documentation, for example, describes a pre-startup audio-head-unit function and notes that it is disabled during transit/storage to reduce parasitic current draw. That does not mean the feature is defective; it shows why model-year-specific behavior matters when interpreting measurements.
Telematics or Other Modules That Do Not Sleep
If testing consistently points to a factory module, check for diagnostic trouble codes and verify whether Toyota has issued a service bulletin, campaign, calibration update, or diagnostic procedure for that exact VIN and model year. Do not perform random battery disconnects, firmware resets, or module reflashes as a substitute for diagnosis.
How to Find an Intermittent Battery Drain
Some 4Runners behave normally during a 30-minute garage test but still have a dead battery days later. In that case, the load may wake only occasionally.
Record current for a longer period with equipment designed for unattended current monitoring, or use a suitable low-current clamp and logging meter. Note whether the current spike occurs at a regular interval or after a specific event, such as unlocking the vehicle, a connected device communicating, an impact waking a dashcam, or a module attempting to reconnect.
Also check whether the problem began immediately after installation of an accessory, battery replacement, audio work, alarm installation, collision repair, or other electrical service. A timeline can narrow the search dramatically.
Confirm the Repair Before Reassembling Everything
After finding a suspect component or circuit, do not stop at the first current drop. Confirm the diagnosis.
- Restore every unrelated fuse and connector to its normal position.
- Reconnect or reinstall the suspected component and verify that the excessive draw returns.
- Disconnect or repair that component and verify that the draw disappears again.
- Let the vehicle complete another full sleep cycle.
- Record the final stable key-off current.
- Fully charge the battery and verify that the 4Runner starts normally after an appropriate parked period.
This repeatability check helps prevent replacing an expensive module because of a temporary sleep-state change.
Preventive Steps: Maintenance, Battery Maintainers, and Software Checks
Battery-drain problems are easier to avoid when the battery and electrical system are kept in good condition. Keep the battery terminals clean and tight, remove unnecessary devices from always-powered outlets, and make sure added accessories are wired through an appropriate switched circuit or a properly configured low-voltage cutoff when required.
If the 4Runner will sit for an extended period, a compatible smart battery maintainer can help keep the 12-volt battery charged. Follow the battery and charger manufacturers’ instructions, especially for AGM or other battery types that require a particular charging mode.
Do not treat module resets or firmware updates as routine parasitic-drain maintenance. When a factory module is suspected, check Toyota’s owner resources, service campaigns, and model-specific repair information. Software updates should be performed only when they apply to the vehicle and condition being diagnosed.
| Action | Tool or Method | Why It Helps |
|---|---|---|
| Voltage check | Digital multimeter | Shows battery state of charge; it does not by itself diagnose parasitic draw |
| Battery-health test | Conductance or load tester | Separates a weak battery from an abnormal vehicle load |
| Maintainer during long storage | Battery-compatible smart maintainer | Helps offset normal standby consumption during extended inactivity |
| Accessory control | Switched power or appropriate low-voltage protection | Prevents aftermarket equipment from continuously draining the battery |
| Software/service check | Toyota service information or dealer diagnostic system | Identifies applicable campaigns, calibrations, or model-specific procedures without guessing |
When to Get Professional Help
Stop the DIY test and use a qualified technician if the meter repeatedly blows its fuse, the key-off current is several amps after obvious loads are switched off, wiring becomes hot, you find damaged or melted insulation, the drain cannot be isolated through the normal fuse panels, or diagnosis requires module programming or detailed network testing.
You should also seek professional diagnosis if you are not comfortable opening the battery circuit or maintaining secure meter connections. An accidental high-current event can damage a meter or vehicle electronics.
Frequently Asked Questions
How do you diagnose a parasitic battery drain on a Toyota 4Runner?
Charge and test the 12-volt battery first. Turn the vehicle completely off, connect a properly fused multimeter in series at the negative battery cable, keep the key away, and allow the electronic modules to sleep. If the stabilized current remains excessive, isolate the responsible circuit using fuse removal or voltage-drop testing across the installed fuses.
Is parasitic draw hard to diagnose?
A constant drain is often straightforward once you can measure it, but intermittent drains can be difficult because the offending device may wake only occasionally. Recording current over a longer period and correlating spikes with module or accessory activity can help.
How much parasitic draw is normal on a 4Runner?
There is no single number in this guide that should be treated as a factory specification for every 4Runner. As a general automotive guideline, less than about 50 mA after all modules are asleep is commonly considered normal, while more than about 100 mA deserves investigation. Check Toyota service information for the exact model-year specification when available.
How long should I wait for a 4Runner to go to sleep?
Do not rely on one fixed time. Automotive modules commonly need roughly 10–45 minutes to settle, and some configurations can take longer. Watch the current until it stops stepping downward and remains stable. Opening a door, approaching with the key, or disturbing a circuit can restart the process.
Can a dashcam drain a 4Runner battery?
Yes. A dashcam configured for parking recording continues to consume power while the vehicle is off. Proper systems use timed or low-voltage shutoff protection. Temporarily disconnect the dashcam or its hardwire kit and repeat the sleep-current test if the problem began after camera installation.
Can I find a battery drain without pulling every fuse?
Yes. Measuring the small voltage drop across installed fuses can reveal which circuits are carrying current while leaving the fuses in place. This is useful on modern vehicles because pulling a fuse may wake electronic modules and change the reading.
Conclusion
A reliable 4Runner parasitic-drain diagnosis follows a sequence: verify the 12-volt battery, confirm the charging system, let the vehicle reach a stable sleep state, measure key-off current safely, isolate the circuit, identify the actual component on that circuit, and repeat the test to confirm the repair.
A resting-voltage number alone cannot identify a parasitic load, and an arbitrary fuse replacement will not solve a module or accessory that remains awake. Measured, repeatable changes in current are the evidence that matters. Pay special attention to interior lights, latch switches, relays, smart-key wake events, aftermarket accessories, and model-specific electronic systems.
