Reviewed by autoreviewnest.com Editorial Team · Fact-checked against Toyota and manufacturer sources · Last updated July 31, 2026
Toyota’s public RAV4 brochures reviewed for this guide describe the console layout but do not list the storage bin’s inner dimensions or the front cupholders’ diameter. The best available owner measurement for a 2023 RAV4 Hybrid SE puts the cupholder at about 3 inches across at the bottom and roughly 2.75 inches deep. The same report gives approximately 6 inches from the bottom to the top of the surrounding cutout.
Treat those figures as anecdotal fit guidance, not factory specifications. Measure your own vehicle before buying a rigid tray, divider, safe, or cupholder expander. The redesigned sixth-generation 2026 RAV4 uses a different console, so fifth-generation accessories should not be assumed to fit it.
Quick Answer
For a 2019–2025 Toyota RAV4, use about 3 inches across at the cupholder’s bottom as a starting estimate, not an official Toyota dimension. Compare the bottle’s base diameter, body taper, height, and handle clearance. A tapered 40 oz tumbler may seat while a straight-sided 32 oz bottle may be too wide. Measure the console opening, base, depth, lid clearance, and obstructions before buying a rigid organizer.
Key Takeaways
- Toyota’s public brochures reviewed for this guide do not list exact internal dimensions for the 2019–2025 RAV4 center-console bin.
- One 2023 RAV4 Hybrid SE owner reported about 3 inches across at the cupholder’s bottom, about 2.75 inches of depth, and roughly 6 inches to the top of the surrounding cutout.
- Compare the bottle’s base diameter, body width, height, taper, and handle clearance instead of relying on fluid capacity.
- The sixth-generation 2026 RAV4 has a redesigned console with a removable cupholder divider and two-way armrest closure.
- Measure the narrowest points and nearby obstructions in your own console before buying an organizer, insert, safe, or expander.
RAV4 Center Console Overview for 2019–2025
Toyota’s 2024 RAV4 brochure describes a covered center-console storage compartment with two cupholders and a front storage tray. Depending on drivetrain and grade, the surrounding console also contains the drive-mode, parking-brake, Brake Hold, and Multi-Terrain Select controls.
The official material confirms the layout but does not provide usable internal measurements. That distinction matters because the bin is not a simple rectangular box. Its opening, lower walls, factory fittings, and lid clearance can produce different measurements at different points.
Use the covered bin for cables, a small pouch, sunglasses, and other compact items. Use the front tray for items that can lie flat without covering controls. Keep drinks in the cupholders rather than placing open containers inside the covered compartment.
How this guide was verified: Toyota publications are used for factory equipment, container manufacturers are used for bottle dimensions, and owner reports are clearly labeled where Toyota does not list a measurement. This article does not claim a site-performed vehicle measurement, and accessory dimensions are not treated as vehicle dimensions.

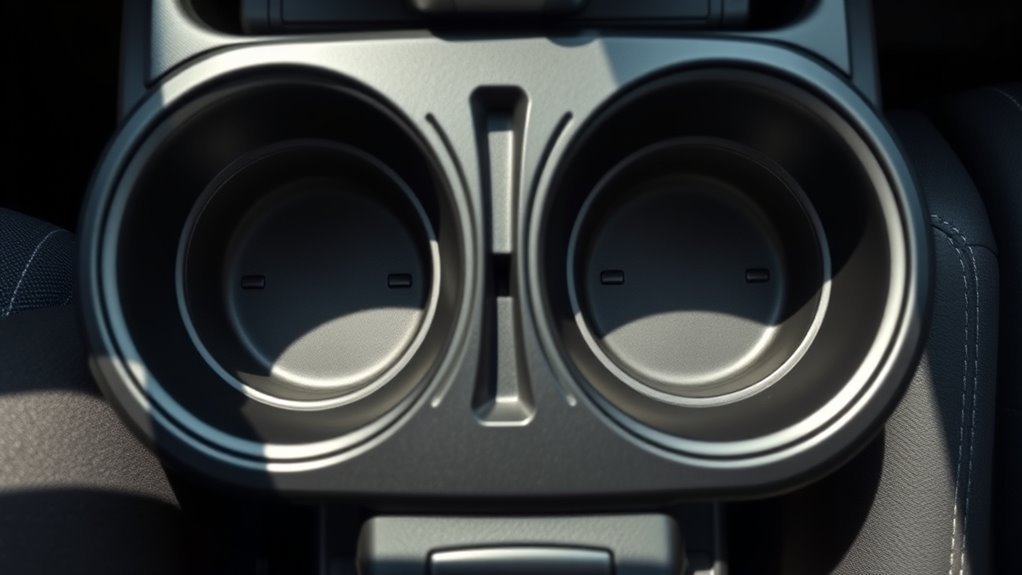

RAV4 Center Console Dimensions: What Toyota Publishes
Toyota’s public fifth-generation RAV4 materials describe the console equipment but do not list the storage bin’s internal length, width, height, taper, or volume. Previously reported 10 × 12 × 6-inch figures could not be independently verified and should not be presented as Toyota specifications.
| Measurement | Best Available Information | How to Use It |
|---|---|---|
| Console-bin length, width, and height | Not listed in the public Toyota brochure reviewed for this guide | Measure your vehicle at the opening, base, and narrowest internal points |
| Front cupholder bottom width | About 3 inches in one 2023 RAV4 Hybrid SE owner measurement | Use only as an anecdotal estimate and confirm against your own holder |
| Front cupholder depth | About 2.75 inches in the same owner measurement | Also check the bottle’s height, taper, handle position, and ease of removal |
| Bottom-to-cutout height reference | About 6 inches in the same owner report | Use as a reach and handle-clearance reference, not as the cupholder’s internal depth |
| One RAV4-specific expander’s listed base range | 3.0–3.25 inches | Treat as that accessory’s fitment range, not a Toyota cupholder specification |
| 2026 RAV4 compatibility | Different sixth-generation console design | Use products explicitly listed for 2026 rather than products listed only for 2019–2025 |

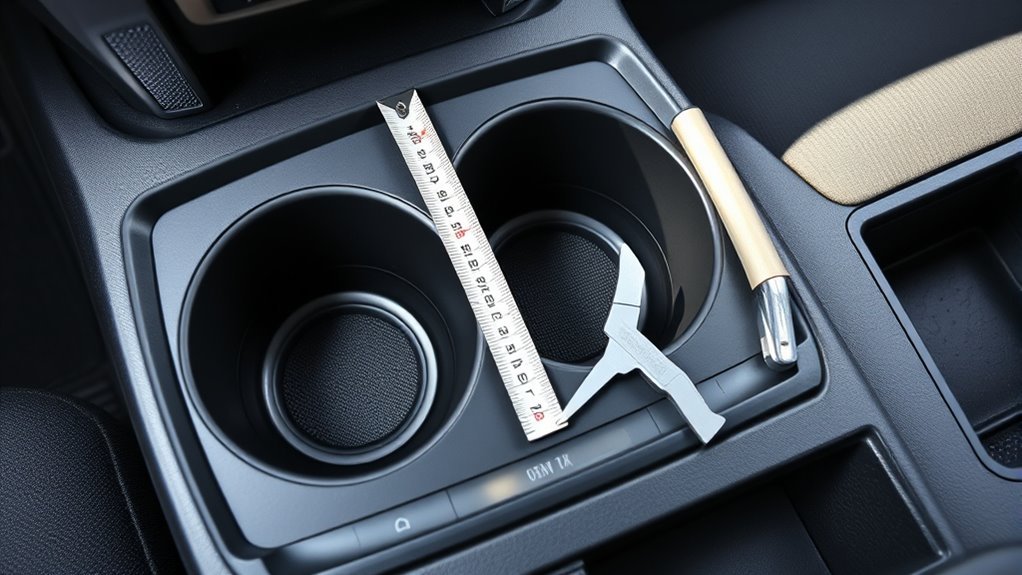

How to Measure the Console Before Buying an Organizer
- Remove loose liners and items. Leave permanent factory fittings in place because the organizer must clear them.
- Measure more than the top opening. Record the internal length and width at the opening, halfway down, and near the base. Use the smallest result when checking a rigid tray.
- Check depth and lid clearance. Measure from the usable base to the lowest point of the closed lid, including any factory tray, cable, or port that occupies space.
- Check access. Confirm that you can insert and remove the organizer without catching its edge on the armrest or nearby controls.
- Record obstructions and operating clearance. Note USB or 12V access, removable liners, cupholder tabs, adjacent-holder space, shifter travel, and nearby switches.
A flexible pouch tolerates tapered walls better than a rigid bin. A molded organizer needs closer measurements because a small difference at the base can prevent it from seating fully.
| Accessory Type | Critical Checks | Reject It If |
|---|---|---|
| Rigid organizer tray | Opening and base length/width, wall taper, usable depth, lid clearance, and port access | It rocks, bows, blocks a port, or prevents the lid from closing normally |
| Divider insert | Base shape, wall taper, factory fittings, and cable clearance | It must be forced into place or presses against wiring, ports, or removable fittings |
| Cupholder expander | Bottom width, depth, movable tabs, bottle base, handle clearance, neighboring holder, and controls | It loosens when pulled, blocks a switch, contacts the shifter, or makes the second holder unusable |
| Console safe | Exact vehicle fitment, installation points, port access, lid opening, and usable interior space | The manufacturer does not list your exact model year, grade, or console configuration |
Is the Dual-Access RAV4 Console a 2019–2025 Feature?
The two-way armrest closure and removable cupholder divider belong to the redesigned 2026 RAV4. Toyota describes those features in its 2026 RAV4 introduction. They should not be used to describe the earlier 2019–2025 console.
For the fifth-generation layout, Toyota documents a covered storage compartment, two cupholders, and a front tray. Owners can add removable dividers or an upper organizer tray, but those are separate accessories rather than evidence that every vehicle came with fixed internal shelves.
Compatibility warning: A product labeled for a 2026 RAV4 may not fit a 2019–2025 model, and a fifth-generation organizer should not be assumed to fit the redesigned 2026 console.
[Products Worth Considering]
This custom-fit center console organizer tray adds practical storage to the Toyota RAV4 2026, helping keep small essentials neatly separated and easy to reach. Designed with precise 3D scanning for a snug fit, it creates extra usable space in the armrest area while reducing clutter and rattling. The durable insert installs easily without tools and includes a non-slip mat to help keep items in place.
This custom-fit center console armrest cover is designed to refresh and protect the lid on compatible Toyota RAV4 models and trims. Made to follow the console curvature for a smooth, wrinkle-free look, it helps guard against scratches, spills, dirt, and everyday wear while improving the appearance of an aging armrest. Installation is simple and the cover is tailored for a snug, secure fit across supported RAV4, RAV4 Hybrid, and RAV4 Prime vehicles.
This custom-fit steering wheel cover is designed for select Toyota models and sized for standard steering wheels to help improve grip and comfort while driving. Made with soft microfiber leather and a non-slip rubber inner ring, it adds control, protects your wheel, and brings a stylish diamond-quilted look to your car interior. Installation is simple and tool-free, making it an easy upgrade for everyday driving.

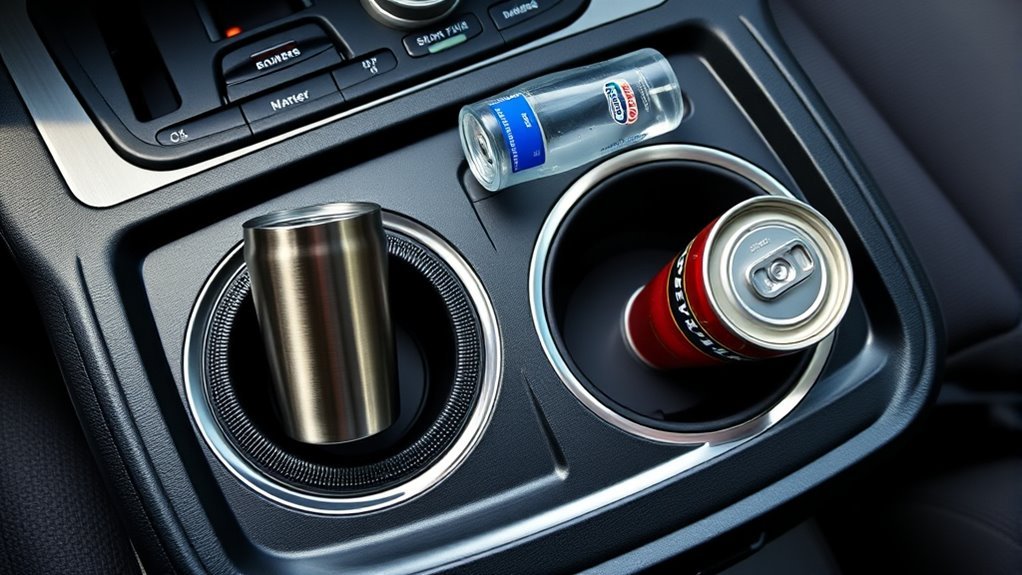

RAV4 Cupholder Size: What Fits and What Does Not?
A useful working estimate for the 2019–2025 front cupholder is about 3 inches across at its bottom. One 2023 RAV4 Hybrid SE owner reported a 3-inch bottom width and approximately 2.75 inches of depth. Toyota has not published or certified those dimensions.
The same owner reported roughly 6 inches from the holder bottom to the top of the surrounding cutout. Use that only as a reach and handle-clearance reference. It helps explain why a short cup can sit low even when its base fits securely.
Do not judge fit by ounces alone. Two bottles with the same capacity can have different bases. A tapered tumbler can seat inside the holder even when its upper body is wide, while a straight-sided insulated bottle may stop before reaching the bottom.
| Container Example | Manufacturer-Listed Diameter | Practical 2019–2025 RAV4 Fit Estimate |
|---|---|---|
| Stanley Quencher H2.0 40 oz | 3.1-inch base | The tapered base may enter, but the deep cutout and low handle can affect seating and removal. Test the exact tumbler while parked. |
| Hydro Flask 20 oz Wide Mouth | 2.90-inch product diameter | More likely to seat than a wider straight-sided bottle, but confirm the holder’s tabs, liner, depth, and removal clearance. |
| Hydro Flask 32 oz Wide Mouth | 3.55-inch product diameter | Unlikely to seat fully in an unmodified holder and may require a properly fitted expander. |
These are dimensional comparisons, not Toyota fit certifications. Production changes, movable tabs, removable inserts, liners, and accessory mats can alter usable space.
A bottle can fit one holder and still make the neighboring holder difficult to use. Check the upper body and handle, not only the base, when two containers will be carried side by side.
For model-specific products, compare RAV4 cupholder inserts and expanders only after measuring your vehicle and bottle. This dimensions guide covers fit checks; the separate roundup covers product choices.
[Products Worth Considering]
This custom-fit car phone holder is designed for Toyota RAV4 models with a 7/8-inch screen, providing a secure and convenient mounting solution without blocking vents or sightlines. It combines magnetic alignment with fast wireless charging to keep your phone powered while offering 360-degree rotation for optimal viewing in portrait or landscape mode. Built from durable ABS material and easy to install without tools, it supports safer hands-free navigation and calling on every drive.
Patented Car Cup Holder Expander: Available in a standard-length version and a long base version. Use the quick measurement guide in the product photos to determine which version will fit your car cup holders.
How to Check a Bottle Before Driving
- Measure the bottle at its base and at the widest section that will enter the holder.
- Place it in the holder while the vehicle is parked.
- Check whether the bottle rocks, leans, blocks the adjacent holder, or contacts the shifter and console controls.
- Turn and remove it several times to confirm the handle does not catch on the console.
- Do not use a bottle or expander that obstructs a control or releases easily when pulled.
RAV4 Door Pockets and In-Dash Storage Trays
Toyota’s 2024 specifications list front-door storage pockets with bottle holders and in-dash storage trays. Some grades use anti-slip tray surfaces, while trim and illumination details vary. Check the brochure or feature sheet for your exact model year and grade.
- Front-door bottle pockets: Use them for closed bottles that sit securely without pressing against the door controls.
- In-dash trays: Use them for flat, lightweight items that will not slide into a control or distract you.
- Covered center-console bin: Use it for cables, small pouches, spare charging accessories, and items you do not need constantly.
- Front cupholders: Reserve these for containers that seat firmly and leave nearby controls accessible.
Toyota’s public brochure does not list dimensions for the door pockets or dash trays. Check the actual opening before buying a fitted liner or rigid insert.
How to Organize Your 2019–2025 RAV4 Console
Start with the factory layout instead of filling every surface with an accessory. Keep frequently used items visible but away from controls. Put loose cables and small objects inside a pouch so they do not collect at the bottom of the covered bin.
Use low-profile organizers where possible. Tall trays and cupholder expanders may make an item easier to reach, but they can also interfere with the shifter, parking-brake switch, drive-mode controls, or neighboring cupholder.
[Products Worth Considering]
Fitment: Center console organizer and armrest tray Compatible with 2019 2020 2021 2022 2023 2024 2025 Toyota RAV4 Adventure/ Hybrid/ XLE/ LE/ Limited/ TRD Off-Road/Premium/ XLE Premium, Perfectly compatible with RAV4 accessories.
Custom Designed: Designed specifically for Toyota RAV4 2026 Accessories, this organizer fits perfectly into your vehicle’s existing storage space for a seamless, built-in look.
Fitment: Center console organizer and armrest tray Compatible with 2019 2020 2021 2022 2023 2024 2025 Toyota RAV4 Adventure/ Hybrid/ XLE/ LE/ Limited/ TRD Off-Road/Premium/ XLE Premium, (Not for New 10.5'' Multimedia Display).Perfectly compatible with RAV4 accessories.
What Fits Where
- Covered console bin: Charging cables, a compact power bank, a small wallet, tissues, and a soft accessory pouch.
- Front storage tray: A phone or parking card that can lie flat without covering a control or charging surface.
- Cupholders: Cups and bottles whose bases seat fully and remain stable during gentle movement.
- Door bottle pockets: Closed bottles that are too wide for the center cupholders but fit securely in the door.
Avoid packing hard or heavy loose objects near the top of an open tray. Secure anything that could move during braking or a sharp turn.
Stop Items Sliding
Non-slip liners reduce movement on smooth plastic, while small pouches stop cables and coins from spreading through the bin. Choose thin materials so the liner does not reduce cupholder space or prevent an organizer from seating correctly.
Pro tip: Test a removable shelf-liner offcut before trimming it permanently. Confirm that it stays flat and does not cover a drain, port, charging surface, or removable factory insert.
| Solution | Purpose | Best Placement |
|---|---|---|
| Thin non-slip liner | Reduces sliding and rattling | Flat console-bin or tray surfaces |
| Soft compartment pouch | Keeps cables and small objects together | Covered console bin |
| Model-specific organizer tray | Creates an upper storage layer | Only in the model years listed by the manufacturer |
| Low-profile cup adapter | Improves grip for a specific bottle base | Cupholder, after a parked clearance test |
Quick Organization Checks
- Separate daily and occasional items. Keep daily items in the upper or front area and occasional accessories deeper in the covered bin.
- Label charging cables. A small tag makes the correct connector easier to identify without searching through the bin.
- Repeat the clearance test. After adding a tray, liner, or expander, confirm that all nearby controls remain easy to reach while parked.
Frequently Asked Questions
What Are the 2019–2025 RAV4 Cupholder Dimensions?
Toyota’s public brochures reviewed for this guide do not list an official diameter or depth. One 2023 RAV4 Hybrid SE owner reported about 3 inches across at the bottom, approximately 2.75 inches of depth, and roughly 6 inches from the bottom to the top of the surrounding cutout. Use those figures as anecdotal estimates and measure your holder before buying a fitted accessory.
Do RAV4 Cargo Dimensions Tell You the Console Size?
No. Cargo volume and rear-floor dimensions do not establish the size of the center-console compartment. Cargo specifications also vary by model year and powertrain. Use the separate RAV4 rear-seat and cargo-floor guide for cargo measurements.
Does the RAV4 Center Console Have USB Ports or Wireless Charging?
Equipment varies by model year and grade. Toyota’s 2024 brochure lists either three or five total USB ports depending on grade. Applicable configurations have two charging ports in the front center-console area, while many grades also have two rear-seat ports. The brochure lists Qi-compatible wireless smartphone charging as standard or package-dependent on selected grades. Check the feature sheet and owner’s manual for your exact vehicle.
Are RAV4 Console Dimensions the Same Across All Trims?
Do not assume identical usable space across every year and trim. The broad factory layout is similar within the 2019–2025 range, but charging equipment, tray design, liners, multimedia configurations, and aftermarket accessory fitment can differ. Match accessories to the exact year, grade, and powertrain listed by the manufacturer.
Will a 40-Ounce Stanley Fit a 2019–2025 RAV4 Cupholder?
The Stanley Quencher H2.0 40 oz has a manufacturer-listed 3.1-inch base, so its tapered base may enter an approximately 3-inch-wide lower section. The deep cutout and low handle can still affect seating, removal, and use of the adjacent holder. Test the exact tumbler while parked before regular use.
Is the 2026 RAV4 Console the Same as the 2019–2025 Console?
No. Toyota describes the redesigned sixth-generation 2026 console as having a cupholder with a removable divider and an armrest/storage bin with a two-way closure. Buy trays, liners, dividers, and expanders that specifically list 2026 compatibility.
How Do I Measure the RAV4 Center Console for an Organizer?
Measure the opening, halfway point, and base because the walls may taper. Then record usable depth, closed-lid clearance, port access, and the narrowest obstruction. Compare the smallest measurements with the organizer’s dimensions and reject any accessory that must be forced into place or blocks a control, port, or lid.
Sources and Measurement Notes
- Toyota 2024 RAV4 brochure: factory console layout, storage features, cupholders, USB-port arrangements, Qi-compatible charging availability, in-dash trays, and door pockets.
- Toyota 2026 RAV4 introduction: sixth-generation console, removable cupholder divider, and two-way armrest closure.
- Stanley Quencher H2.0 40 oz specifications: 3.1-inch base diameter.
- Hydro Flask 20 oz Wide Mouth specifications: 2.90-inch product diameter.
- Hydro Flask 32 oz Wide Mouth specifications: 3.55-inch product diameter.
- Owner-reported 2023 RAV4 Hybrid SE cupholder measurement: anecdotal bottom width, depth, and bottom-to-cutout reference used only as fit guidance.
- JOYTUTUS RAV4 cupholder expander specifications: one accessory designed for cupholder openings listed at 3.0–3.25 inches.
- Owner discussion of Stanley fit in a 2024 RAV4: anecdotal reports of deep-holder and handle-clearance issues.
Conclusion
For a 2019–2025 RAV4, about 3 inches across at the cupholder’s bottom is a useful owner-reported estimate, but it is not an official Toyota specification. Toyota’s public brochure does not list the console bin’s internal length, width, or height, so rigid-accessory compatibility should be based on measurements from your own vehicle.
Before buying, record the console opening, base, usable depth, closed-lid clearance, port and control obstructions, and the bottle’s base and handle clearance. A tapered 40 oz tumbler can fit differently from a straight-sided 32 oz bottle, and a handled cup may reduce access to the adjacent holder.
Use separate fitment information for the redesigned sixth-generation 2026 RAV4. Its removable divider and two-way armrest closure make it a different console rather than a continuation of the 2019–2025 layout.
