If your Toyota 4Runner rear window switch works from the tailgate but not from the cabin, start with the window-lock/lockout control, then test the cabin switch and wiring before replacing the motor. For 1991–1995 4Runners, Toyota part 84810-35010 is cataloged as the back-door power-window regulator switch assembly. Those trucks use a different control layout from later generations, so do not assume a driver-door switch location or a modern control-module diagnosis applies to every 4Runner. If neither the cabin control nor the tailgate control works, expand the diagnosis to power supply, interlocks, wiring, relay/control components, regulator, and motor.
Last updated: August 8, 2026
Byline: [VERIFY: add the real author name and relevant automotive experience/credentials before publishing.]
| Model-year scope | What to know before troubleshooting |
|---|---|
| 1991–1995 4Runner | Part 84810-35010 is cataloged for these model years. Service information identifies a rear-window lock switch on the center console, and the rear-window circuit should be diagnosed with the correct model-year wiring diagram. |
| Later 4Runners | Switch locations, lockout behavior, interlocks, ECUs/relays, and part numbers changed. Use this guide for the diagnostic logic, but verify the exact procedure for your year before ordering parts or probing wiring. |

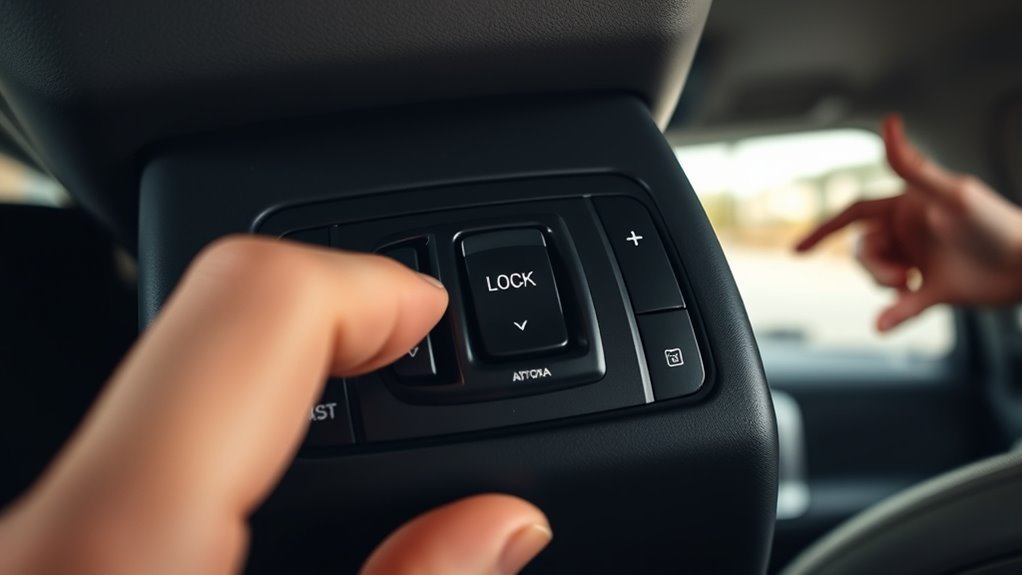

Quick Checks: Is the Window Lock On and Does the Exterior Switch Work?
Start by identifying the model year, because Toyota changed the rear-window controls across generations. On a 1991–1995 4Runner, check the rear-window lockout control and the cabin rear-window switch before removing trim. If the tailgate key control can move the glass but the cabin switch cannot, the motor and regulator have already shown that they can move the window, so the cabin switch, lockout circuit, connector, or wiring becomes a stronger suspect. If neither control moves the window, check the circuit power supply, tailgate/interlock inputs, wiring, relay or control unit, and motor/regulator in that order.
- Confirm the year: do not use a later-generation switch diagram on a 1991–1995 truck.
- Release the rear-window lockout: make sure the lock switch is not intentionally disabling the cabin control.
- Test the cabin switch: note whether it works up, down, both ways, or not at all.
- Test the tailgate control: if your model uses the key cylinder or an exterior control, compare its behavior with the cabin switch.
- Listen and observe: clicking, motor noise, partial movement, or no sound at all points to different parts of the circuit.
Do not force the glass or bypass safety interlocks just to make the window move. A rear window that binds, reverses, or stops partway can have a mechanical problem in addition to an electrical fault.
[Products Worth Considering]
These replacement fender flare clips are designed to restore secure body trim mounting on compatible Toyota vehicles. The kit includes both rocker moulding and wheel flare moulding clips with sealers, helping ensure a proper fit for common applications on 4Runner, FJ Cruiser, Highlander, RAV4, and Tacoma models. With a mixed 100-piece assortment, this set is ideal for repairs, trim replacement, and maintenance.
This AstroAI digital multimeter is designed for accurate troubleshooting of automotive and household electrical systems. It measures AC/DC voltage and current, resistance, continuity, capacitance, frequency, duty cycle, diode, and temperature, while the True RMS and auto-ranging functions help deliver reliable readings. A backlit LCD, data hold, kickstand, and safety-focused fuse protection make it practical and dependable for everyday diagnostics.
This OEM-style rear wiper blade is designed as a direct replacement for compatible Toyota vehicles, helping deliver a quiet, streak-free wipe for clearer rear visibility. Built with PTFE-coated natural rubber and an exact-fit design, it installs quickly and is made to match original rear wiper performance. A free-return guarantee adds extra peace of mind for your replacement purchase.
What the Rear Hatch Switch Does and Where to Find It
The phrase rear window switch can refer to different controls depending on the 4Runner generation: the cabin up/down switch, a separate rear-window lock switch, or the exterior tailgate/key control. That distinction matters because the original draft mixed these controls together. For the 1991–1995 part discussed here, verify the center-console controls and the tailgate circuit using the model-year service information before ordering a replacement.
Where Is the Rear Window Switch?
On 1991–1995 4Runners, the cabin rear-window controls are associated with the center console, not a dedicated rear-window rocker on the driver’s door. The tailgate can also have an outside key-operated control. Later 4Runners use different layouts; for example, Toyota’s 2000 4Runner owner’s manual describes an inner switch on the center console and an outer control on the back door. Always match the control location to the exact model year before removing panels.
Switch Functions Explained
The cabin switch commands the rear glass up or down, while the lockout switch prevents unintended operation. The exterior tailgate control provides a second command path on equipped models. That makes a simple comparison useful: if one control works and the other does not, focus diagnosis on the failed control path before condemning the motor. If both controls fail, move upstream to power, interlocks, relay/control components, wiring, and then the motor/regulator.
- One control works: inspect the non-working switch, connector, lockout path, and related wiring.
- Both controls fail: check shared power, grounds, interlocks, relay/control hardware, and the motor circuit.
- Window moves slowly or binds: inspect the regulator, tracks, weatherstrips, and mechanical load as well as electrical supply.
How the Window Lock Affects the Rear Window
Do not call every lockout a “child lock,” because the control and location vary by generation. For 1995 service information, the rear-window lock switch is identified on the center console. On later 4Runners, Toyota owner documentation shows that a window-lock switch can disable the back-window switch. If the rear glass suddenly stops responding from inside the cabin, verify the lockout position before buying a switch or motor.
Replace the Rear Window Switch: Tools, Part 84810-35010, and Fitment
84810-35010 is cataloged as a Toyota Switch Assy, Back Door Power Window Regulator for 1991–1995 4Runners. Do not treat that part number as universal across all 4Runner generations. Confirm your VIN, model year, connector, and switch layout before purchase.
Useful tools for diagnosis and replacement can include a plastic trim tool, Phillips screwdriver, digital multimeter, flashlight, and the correct wiring diagram. Disconnect the negative battery cable before unplugging or replacing electrical components when the service procedure calls for it. Reconnect power only when a test requires the circuit energized, and keep hands clear of the moving glass and regulator.
- Diagnose before replacing: verify the lockout and compare cabin versus tailgate operation.
- Confirm fitment: match 84810-35010 to your exact 1991–1995 4Runner configuration before ordering.
- Follow the factory trim procedure: [VERIFY: confirm the exact center-console trim-removal sequence for your model year before prying panels.]
- Inspect the connector: look for looseness, corrosion, heat damage, bent terminals, or pulled wires.
- Test after installation: confirm both up and down operation and recheck the lockout function before reassembling everything.
The original 15–30 minute replacement estimate is not retained because the verified sources do not establish a universal labor time. Actual time depends on model year, trim access, connector condition, and prior repairs.
[Products Worth Considering]
This metal replacement center console latch is designed to restore secure closing performance for a wide range of Toyota and Scion vehicles. Built as an upgraded metal part, it helps solve broken latch issues and provides a more durable alternative to the original component. It is compatible with many popular models and includes the needed screws and screwdriver for installation.
This professional circuit tracer helps diagnose open and short circuits in vehicle wiring with synchronized LED bars and audible feedback for easier fault tracking in noisy environments. It offers open, short, and continuity modes plus adjustable sensitivity to help locate broken wires, shorts to ground, and hidden harness faults in cars, trucks, RVs, trailers, and boats. Designed for low-voltage DC systems, it supports efficient troubleshooting of lighting, accessories, stereo wiring, and other automotive electrical problems.
This automotive test light combines a bright LED voltage display with quick polarity indication for fast, accurate circuit checks in a wide range of vehicle systems. It helps diagnose battery, charging, lighting, and fuse issues with a sharp stainless probe, long spring wire, and easy-to-use alligator clip for efficient troubleshooting.

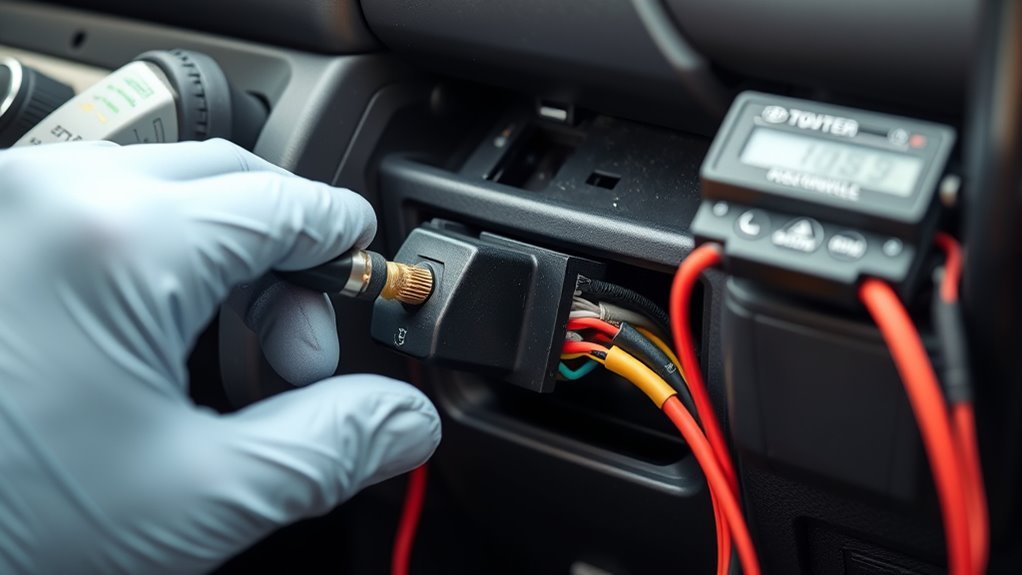

Deeper Troubleshooting: Wiring, Switch Contacts, Interlocks, and Control Hardware
If the easy checks do not isolate the fault, use the model-year wiring diagram. On a 1991–1995 4Runner, do not jump straight to a modern “BCM” diagnosis. Service information for the older system uses different switches, relays/control hardware, and tailgate inputs. A logical test order is switch and lockout continuity, connector condition, shared power and grounds, tailgate/interlock inputs, relay/control unit, then motor/regulator operation.
Wiring Harness Integrity
Inspect connectors and harness sections near the center-console controls, body-to-tailgate transitions, and inside the tailgate for broken insulation, corrosion, loose terminals, or previous splice repairs. With the battery disconnected, continuity testing can help locate an open circuit. With the circuit energized, voltage testing should follow the factory diagram so you do not short adjacent terminals or bypass a safety input. If the rear window works from the tailgate but not the cabin, prioritize the cabin switch/lockout wiring path instead of opening the tailgate first.
- Check connectors for corrosion, heat damage, and loose pins.
- Check continuity only on a de-energized circuit unless the service procedure specifies otherwise.
- Use voltage-drop or power/ground tests when the wiring diagram identifies the correct terminals.
Switch Contact Wear
A worn switch can cause one-direction operation, intermittent response, or no response from the cabin while the tailgate control still works. The safest diagnosis is to test the switch at its connector against the continuity values in the correct service information. Avoid sanding or aggressively scraping plated contacts because that can remove the contact surface. If the switch fails continuity testing or shows heat damage, replacement is more reliable than repeated cleaning.
Relay, Control Unit, and Interlock Diagnostics
For a 1991–1995 4Runner, diagnose the older rear-window control circuit rather than assuming a later multiplex door ECU or BCM is present. 1995 service information references a door-lock control relay in the power-window system and separate tailgate/window inputs. Owner and forum troubleshooting also points to tailgate safety/interlock conditions as common causes of a dead rear window. Confirm each input on the wiring diagram before replacing a relay, control unit, or motor.
- Verify shared power and ground.
- Verify the lockout and tailgate/interlock inputs.
- Test the relay/control unit outputs using the correct wiring diagram.
- Test the motor/regulator only after the command circuit is proven.
[VERIFY: confirm the exact rear-wiper/tailgate interlock logic for the specific 1991–1995 model before stating that a particular switch must be closed or parked.]
When to See a Dealer or Toyota Specialist
A 1991–1995 4Runner is far beyond the original new-vehicle warranty period, so do not frame this repair as a routine warranty claim. A Toyota dealer, independent Toyota specialist, or experienced auto-electric technician makes sense when the circuit has multiple faults, prior wiring repairs, corroded connectors, an intermittent relay/control issue, or a window that binds mechanically.
Bring a short test record: model year, whether the lockout is released, whether the cabin switch works up/down, whether the tailgate control works, whether the motor makes noise, and any continuity or voltage results. That information helps a technician avoid replacing the motor when the fault is actually in a switch, interlock, relay, or harness.
Buying Guide: OEM 84810-35010 vs. Aftermarket Compatibility
For 1991–1995 4Runners, the main buying decision is verified fitment, not simply OEM versus aftermarket. A current genuine-parts catalog lists 84810-35010 for 1991–1995 4Runners and shows a selling price of $101.47 against a listed MSRP of $143.03 as of August 8, 2026. Another supplier marks the same Toyota part number as discontinued, so availability is inconsistent and can change by seller.
- OEM/new old stock: strongest part-number traceability, but stock may be limited and pricing can vary.
- Used OEM: can preserve factory fit, but inspect the connector, rocker action, heat marks, and return policy.
- Aftermarket: may cost less, but verify connector shape, terminal count, switch function, return policy, and exact model-year compatibility.
Do not buy solely from a generic “fits 4Runner” title. Match the part number and connector to your vehicle, and confirm whether you need the up/down switch, the separate lockout switch, or an exterior tailgate component.
[Products Worth Considering]
These power liftgate struts are designed to restore smooth, reliable rear hatch operation on Toyota RAV4 models from 2013 to 2018. Built for plug-in installation with original-style fitment, they help reduce noise and shock while delivering strong, dependable lift support. The units are engineered for durability and long service life, making them a practical replacement for worn electric tailgate actuators.
This 26-piece terminal removal tool kit is designed to help you depin and service automotive wire connectors with greater speed and accuracy. It supports a wide range of connector types used in cars, trucks, motorcycles, and other equipment, while the organized case keeps each tool easy to find and carry. Built for reliable, damage-free terminal removal, it is a practical choice for professional electrical work and DIY wiring repairs.
These grille retainer clips provide a reliable replacement for the OEM Toyota 90467-12040 part number, helping restore secure body panel attachment on compatible vehicles. Designed for a tight push-in fit, they are made from durable black nylon to resist wear, corrosion, and cracking during everyday use. This set of 10 is ideal for keeping spare clips on hand for grille and trim repairs.
Frequently Asked Questions
Does the 4Runner Have a Power Rear Window?
Many 4Runner generations use a power rear window, but the switch layout and control logic vary by model year. The 1991–1995 trucks discussed in this guide use older center-console and tailgate controls, while later generations use different electronics and part numbers.
Why Does the Rear Window Work With the Tailgate Key but Not the Cabin Switch?
If the tailgate control moves the glass normally, the motor and regulator can operate. Check the cabin switch, rear-window lockout, connector, and wiring path first. A failed cabin switch or open circuit is more likely than a completely failed motor when the exterior control still moves the window.
Does the Window Lock Disable the 4Runner Rear Window?
It can, depending on generation. 1995 service information identifies a rear-window lock switch on the center console, while later Toyota owner documentation shows a window-lock switch that disables the back-window switch. Check the lockout before replacing parts.
Does Toyota Part 84810-35010 Fit Every 4Runner?
No. Current Toyota parts-catalog data lists 84810-35010 for 1991–1995 Toyota 4Runner applications. Later 4Runners use different switch assemblies and control systems, so verify fitment by year and VIN before ordering.
Can a Tailgate or Wiper Interlock Stop the Rear Window?
Yes, some 4Runner rear-window systems use safety or position inputs that can prevent operation when the system does not see the expected tailgate or related condition. The exact interlock logic varies by generation, so use the wiring diagram for your model year rather than bypassing a switch.
Sources and Verification Notes
- Toyota 2000 4Runner Owner’s Manual (OM35762U): verifies an inner center-console power-back-window switch, an outside back-door control, and generation-specific lockout behavior.
- 1995 4Runner power-window service information: identifies the rear-window lock switch on the center console and provides continuity-test logic for the tailgate/window switches.
- Current OEM parts-catalog data: lists Toyota 84810-35010 as a back-door power-window regulator switch assembly for 1991–1995 4Runners.
Conclusion
For a 1991–1995 Toyota 4Runner rear window switch problem, start with the rear-window lockout, compare the center-console control with the tailgate control, and test the switch/wiring path before replacing the motor. Toyota part 84810-35010 is cataloged for 1991–1995 applications, not every 4Runner generation. If both controls fail, use the correct wiring diagram to check shared power, tailgate/interlock inputs, relay/control hardware, wiring, and the motor/regulator. Avoid bypassing safety switches, and use a Toyota specialist or auto-electric technician when the circuit has multiple or intermittent faults.
